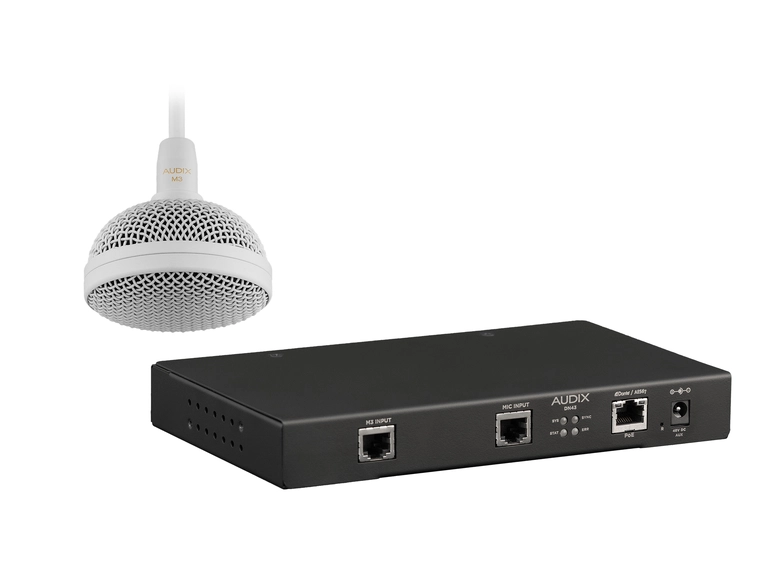

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante | AES67 microphone interface, providing a simple to install, network-ready way to stream Audix audio performance through Ethernet networks.
The M3 is an innovative, tri-element hanging microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise.
The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48KHz audio.
M3 FEATURES
- 100% RF shielding and immunity
- Very high output, low self-noise
- Frequency and pattern tailored for voice clarity and rejection of extraneous noise
- Evenly dispersed sound with undetectable phase
- High-quality silicone jacketed microphone cable with adjustable length and position
- Plenum-rated junction box with RJ45 connector
- TAA compliant
- Easy to install
- Available in white and grey (see below for model options)
DN43 FEATURES
- Balanced audio inputs with RFI filtering
- High-fidelity 24-bit, 48KHz audio
- Each channel has selectable pre-amp gain, as well as low- and high-pass filters
- Two 5V logic outputs per port, with source/sink capability, for LEDs, if the mic is so equipped
- One logic input per single-element microphone port for buttons
- 48V phantom power output
- Operates on PoE from any IEEE 802.3af compliant equipment
- Dante Domain Manager (DDM) ready
