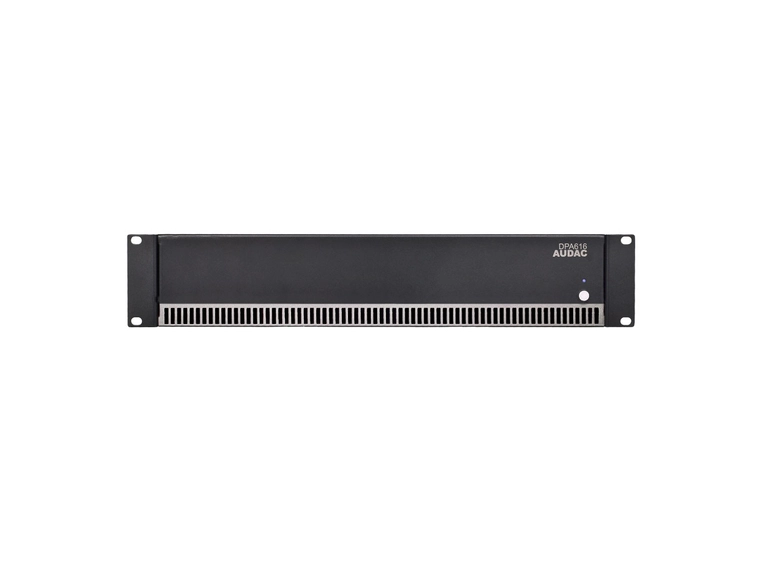

Audac DPA 616 - Sixteen channel Class D

amplifier

Product nr: 1065501
Audac DPA 616 - Sixteen channel Class D amplifier Audac DPA 616 - Sixteen channel Class D amplifier Audac DPA 616 - Sixteen channel Class D amplifier
24 995,-
-+
Temporarily out of stock
Send an email to post@evenstadmusikk.no for delivery time

View this product description in Norwegian.



Sixteen channel Class D amplifier

The AUDPA616 is a professional sixteen channel power amplifier, which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 output channels. When used in bridge mode, it can deliver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs. This way, the AUDPA616 is the perfect solution for installed Multi-Zone audio distribution systems with 8 or 16 zones.

It is designed as a no-nonsense amplifier with only the necessary controls and connections, which creates great simplicity in use and installation.

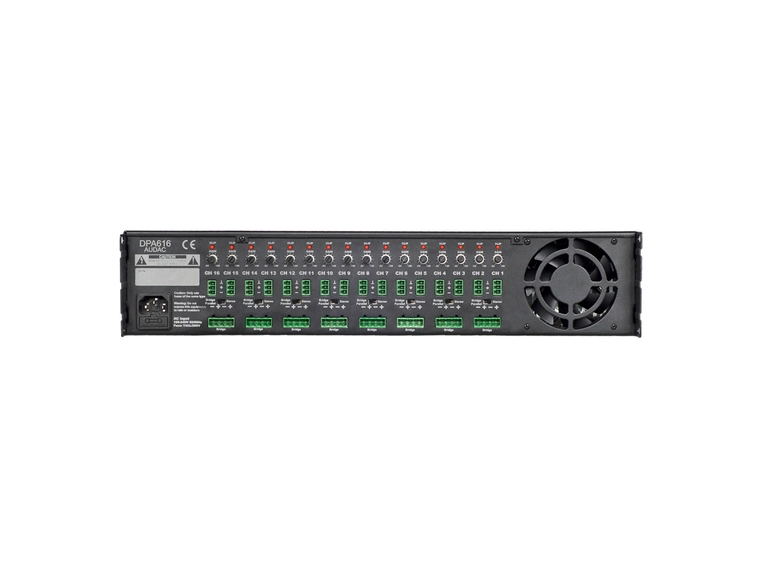

The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors is a Stereo / Bridge & Parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal.

The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels.

A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary.

This all is housed in a double rack space, steel 19” rack mount housing.

  • Type: 16-channel
  • Output Power 1 KHz @ 4 ohms: 16 x 60 W
  • Output Power 1 KHz @ 8 ohms: 16 x 30 W
  • Output Power 1 KHz @ Bridge 8 ohms: 8 x 120 W
  • Output Circuity: Class-D
  • Frequency Range: 20 - 20.000 Hz
  • THD:< 0,1 %
  • S / N Ratio:>100 dB
  • Protection: DC short circuit, Overheat, Over load, Signal limiting
  • Controls: 16 x Gain, 8 x Stero/Bridge
  • Indicators: 16 x Clip LED
  • Connectors Line Input: 3-Pin Terminal block
  • Connectors Speaker Output: 4-Pin Terminal block
  • Cooling System: Low noise fan
  • Power Supply: SMPS
  • Width: 482 mm
  • Height: 88 mm
  • Depth: 322 mm
