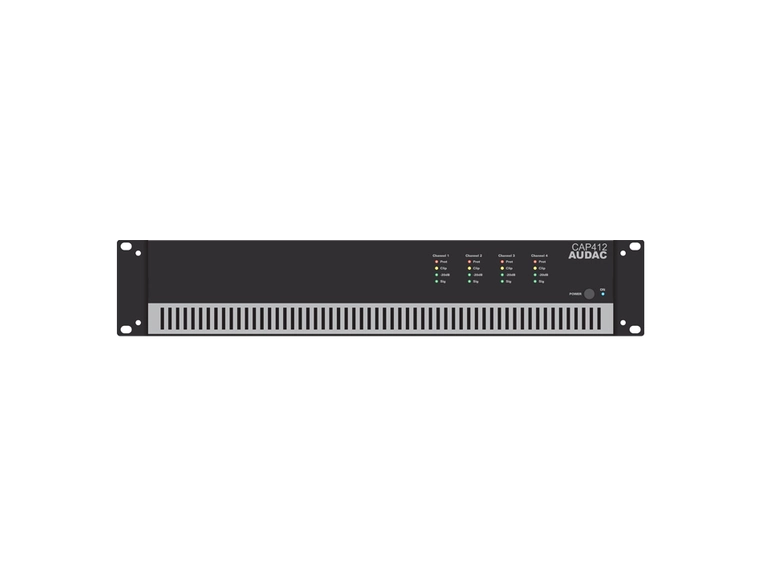

The CAP412 is a professional four channel 100 V power amplifier which is capable of providing 1220 Watt to each of the four seperate output channels. This creates a great flexibility and new possibilities for installed Multi-Zone audio distribution systems.
It is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. Every output channel contains different power taps to be used in 100 Volt, 70 Volt and even 4 Ohm low impedance applications, and the input signal connections are preformed using balanced XLR connectors, allowing link through to other amplifiers.
Besides all the desired connection possibilities, the CAP412 also offers a gain control potentiometer and a high-pass filter swich (400 Hz) on the back of the unit. A built-in multipurpose protection circuit protects against DC malfuntion, short circuit, overheating, overload and limits the signal when necessary.

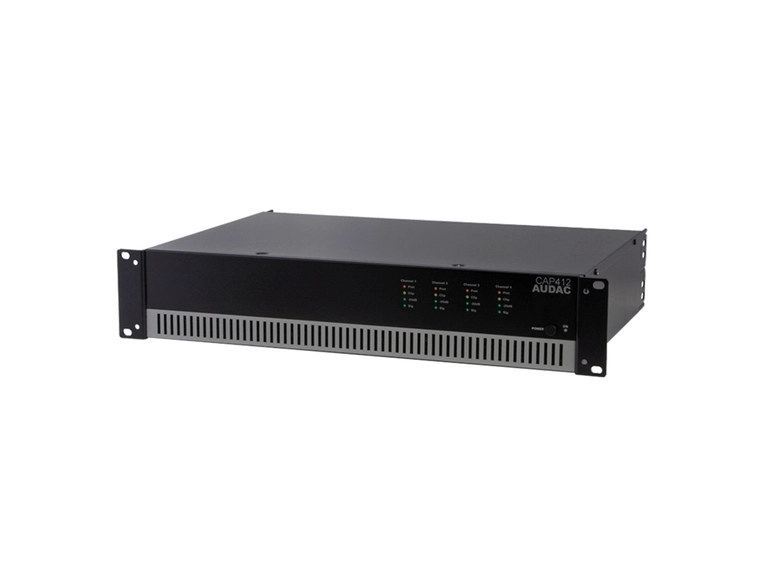

This all is built into a double rack space, stell 19" housing.
- 4 x 100 V Output Channels
- 100 V, 70 V, 4 Ohm Power Taps
- Signal Link trough
- Advanced protection circuit
- High-pass filter
- RMS power: 4 x 120 W
- Frequenzy Response:50 Hz - 15 kHz
- THD + n: ? 0,01 %
- Signal / Noise:>90 db
- Power Supply: 100 - 240 V AC / 50 - 60 Hz
- Dimensions (W x H x D): 482 x 88 x 433
