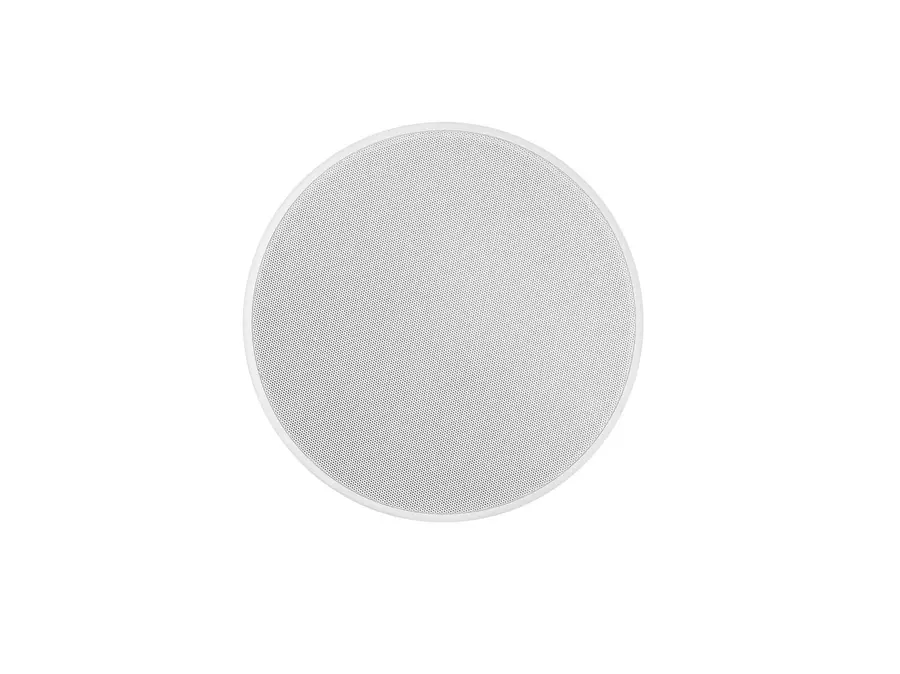

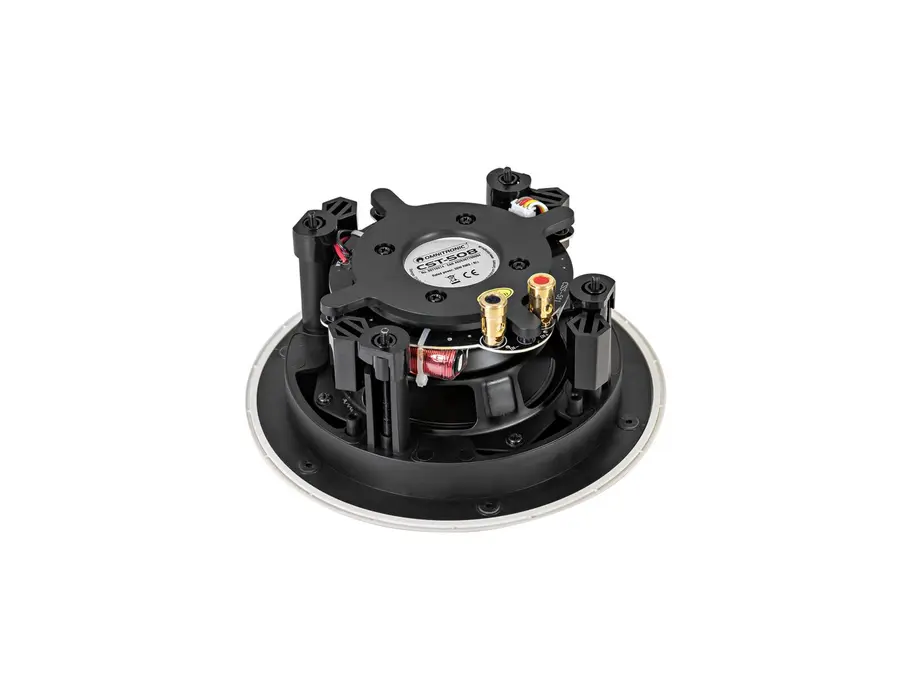

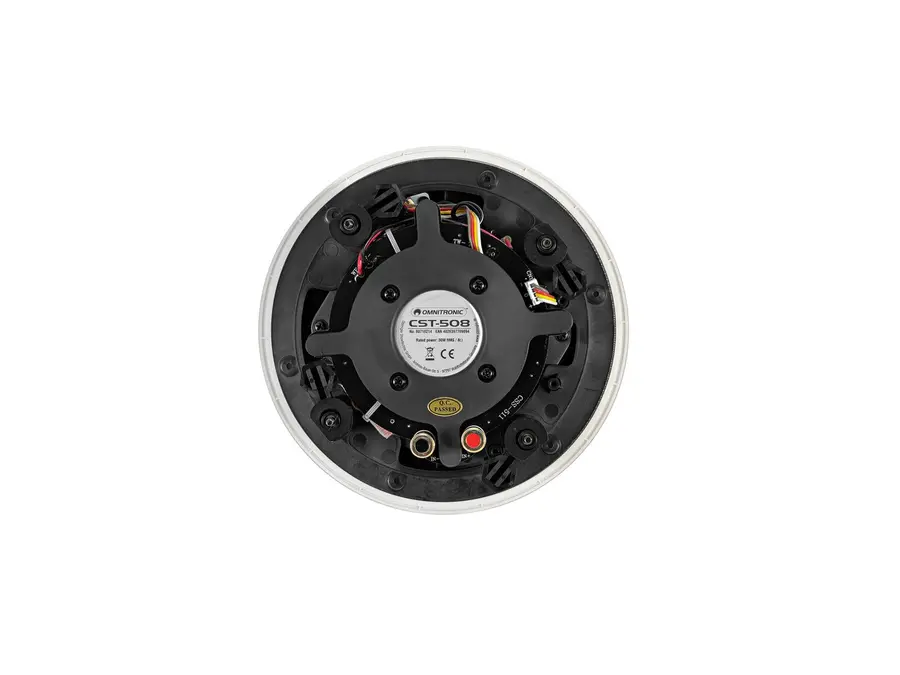

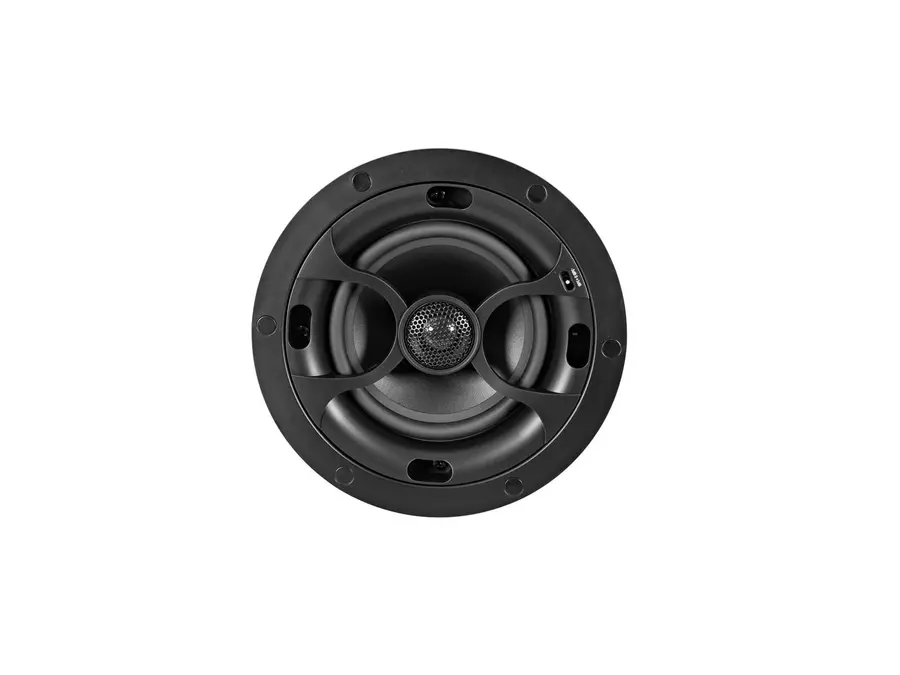

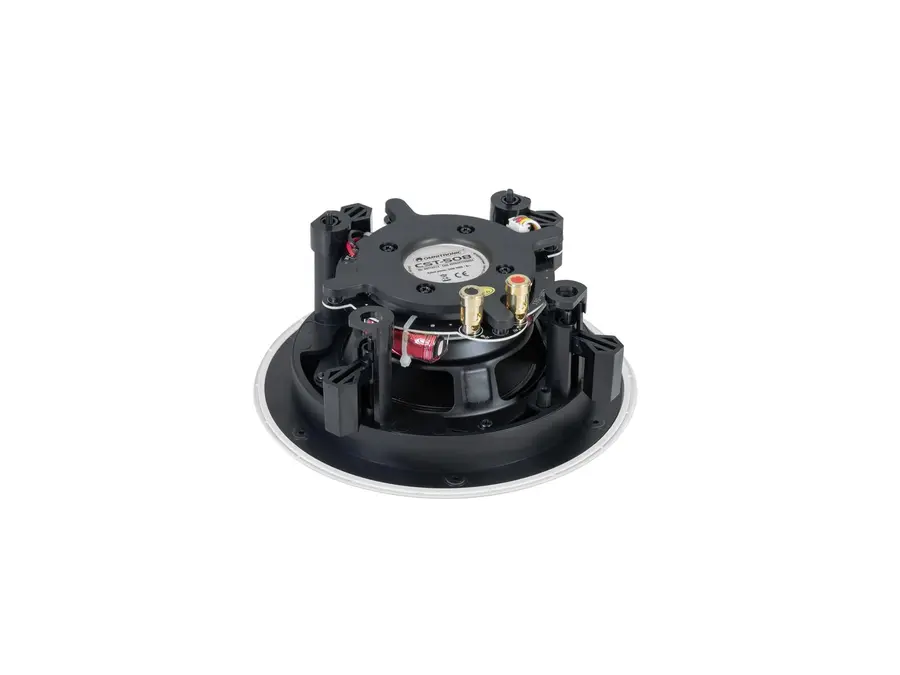

The OMNITRONIC CST-508 is a frameless, flush-mount 2-way coaxial ceiling speaker for speech and background music in indoor PA systems. Its discreet design makes it suitable for installations in hotels, restaurants, bars, foyers, training and conference rooms, shopping centres and sports centres or gyms. The coaxial system offers a frequency range of 50–20,000 Hz, while the tweeter can be tilted by 30° and rotated through 360° to adapt the sound direction to the installation.
- 5.3" woofer and 0.75" tweeter
- 30 W RMS rated power and 60 W program power
- 8-ohm impedance
- Passive 2-way crossover with PTC tweeter overload protection
- Level matching switch: -3 dB, 0 dB or +3 dB
- 165° omnidirectional dispersion
- Sensitivity: 86 dB (1 W/1 m); maximum SPL: 104 dB
- Secure mounting clamps for fast installation
- Exchangeable front grille
- White ABS construction with scratch-resistant and shock-resistant finish
Specifications
- Mounting dimensions: 9.5 cm diameter / 17.2 cm
- Dimensions: 9.6 cm height, 21.1 cm diameter
- Weight: 1.24 kg
Included
- 1 x speaker
- 1 x user manual
