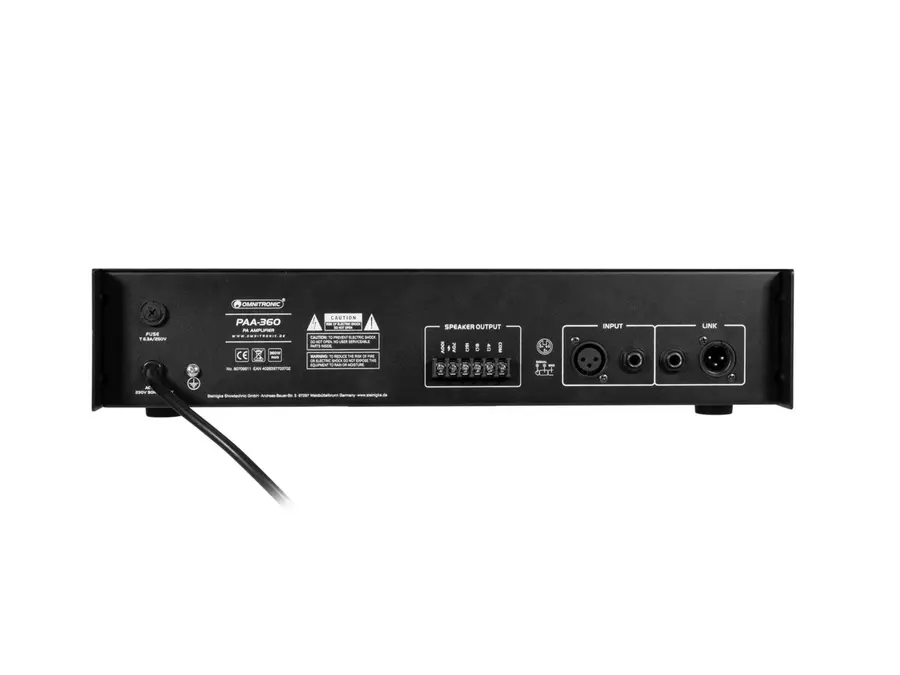

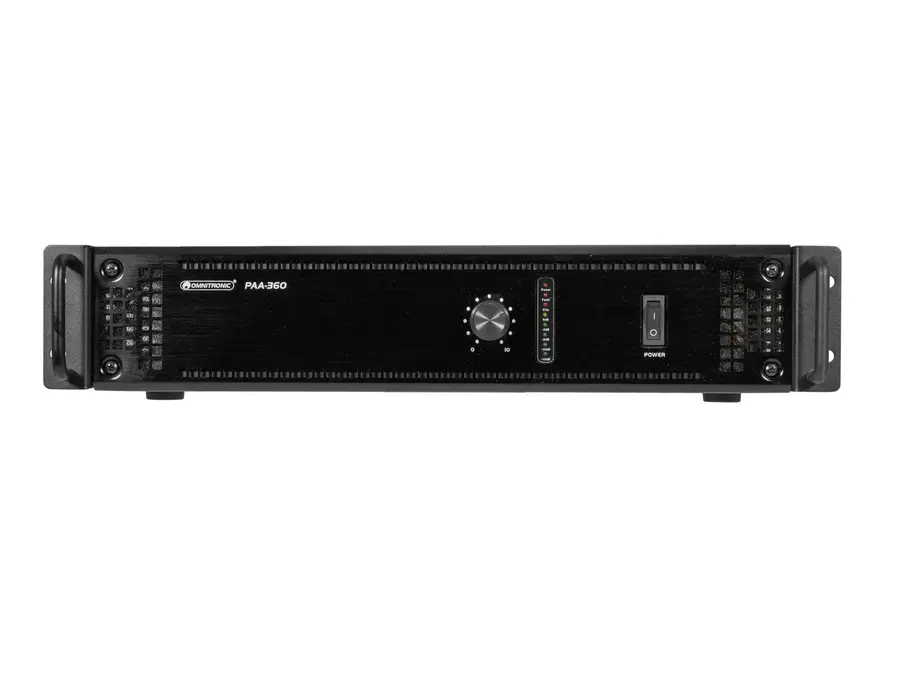

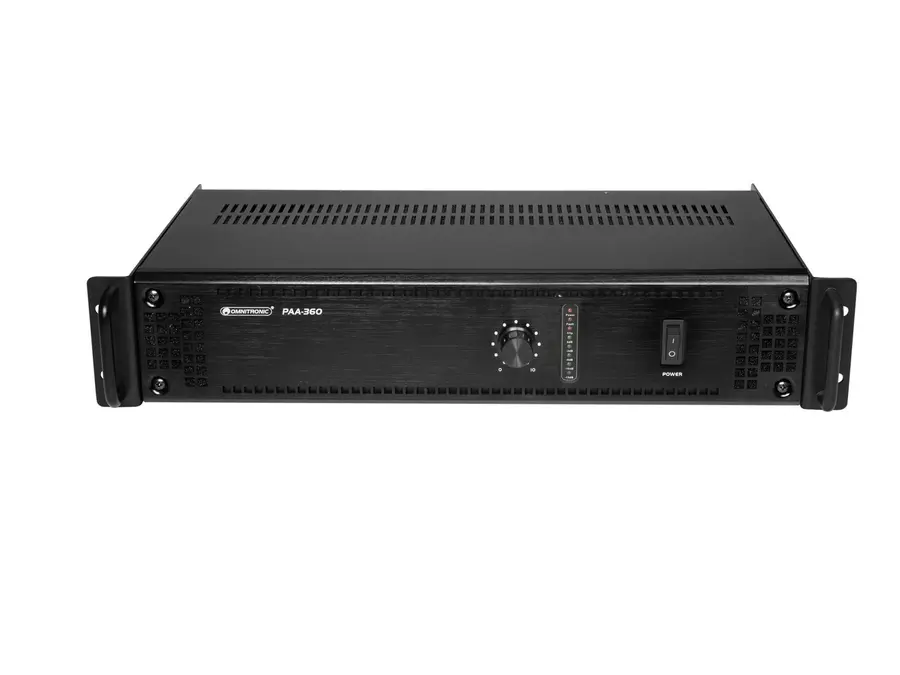

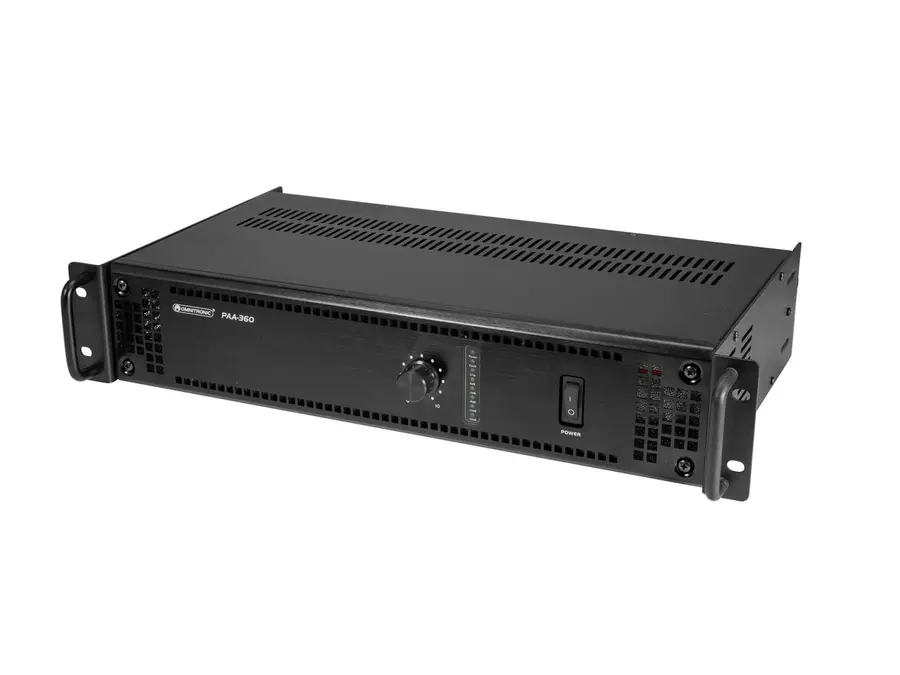

OMNITRONIC PAA-360 is a 360 W RMS PA power amplifier for installations, restaurants, bars, hotels and sports centres or gyms. It features a line input, a feed-through output, a master control and status LEDs for power, level, clipping and faults.

• 360 W RMS output power
• Class AB circuitry
• Line input via 3-pin XLR or 6.3 mm mono jack
• Feed-through line output via XLR or 6.3 mm mono jack
• Master control
• LED indicators for power, level, clip and fault
• Compatible with 4–16 ohm speaker systems and 70 V or 100 V public address systems
• Protection functions for soft start, overheating, overload, short circuits and DC voltage
• 19-inch rack-mountable housing, 2 U

Technical specifications

• Frequency range: 80–16,000 Hz
• Signal-to-noise ratio: >90 dB
• THD: <0.5% at 1 kHz
• Power supply: 230 V AC, 50 Hz
• Power consumption: 720 W
• Dimensions: 48.3 × 38.5 × 9.2 cm
• Weight: 6.80 kg

Included

• Amplifier
• User manual
• 2 holders
• 4 screws
