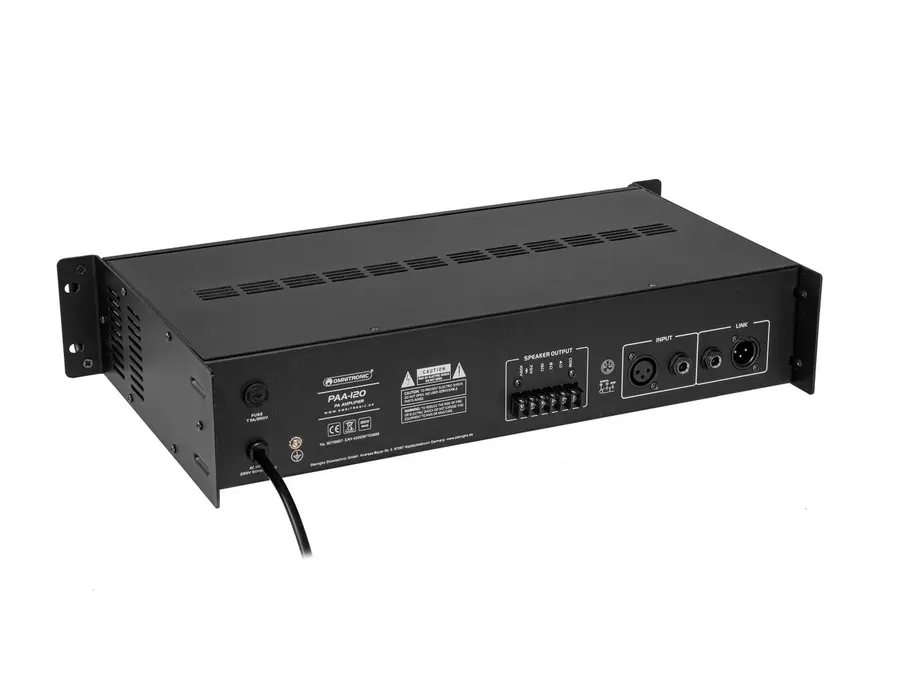

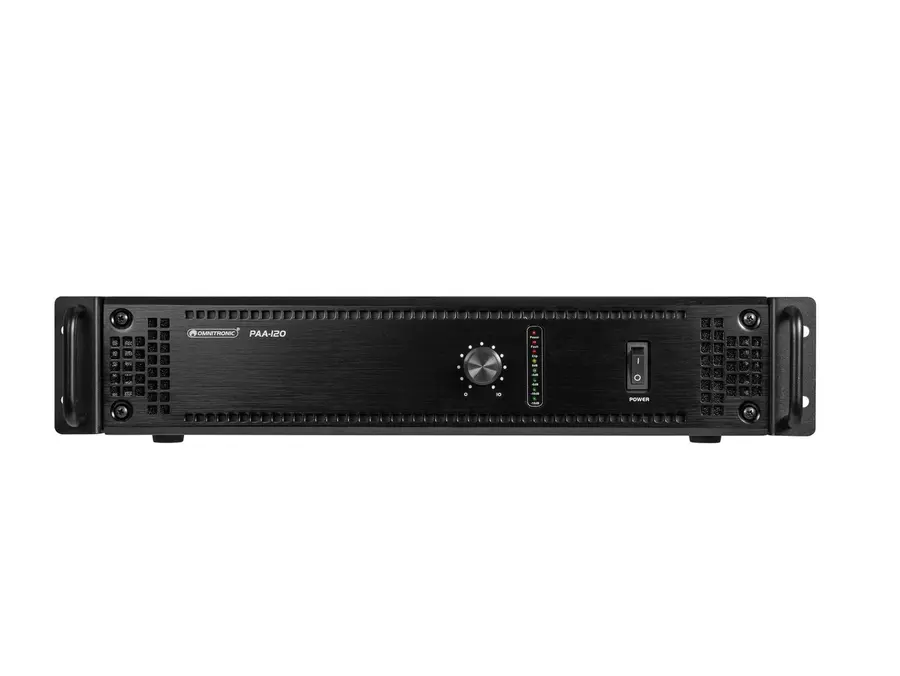

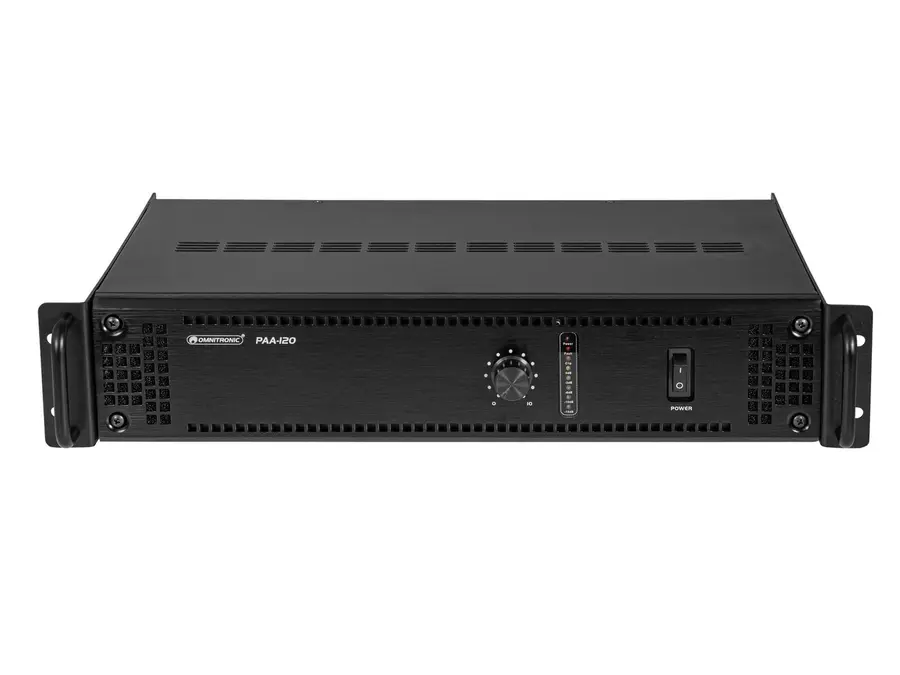

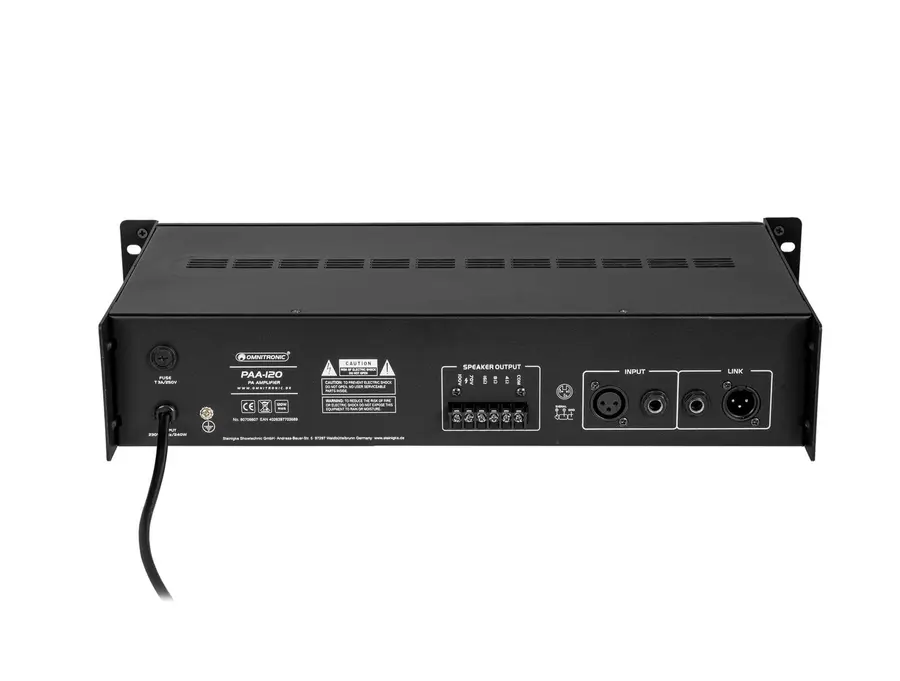

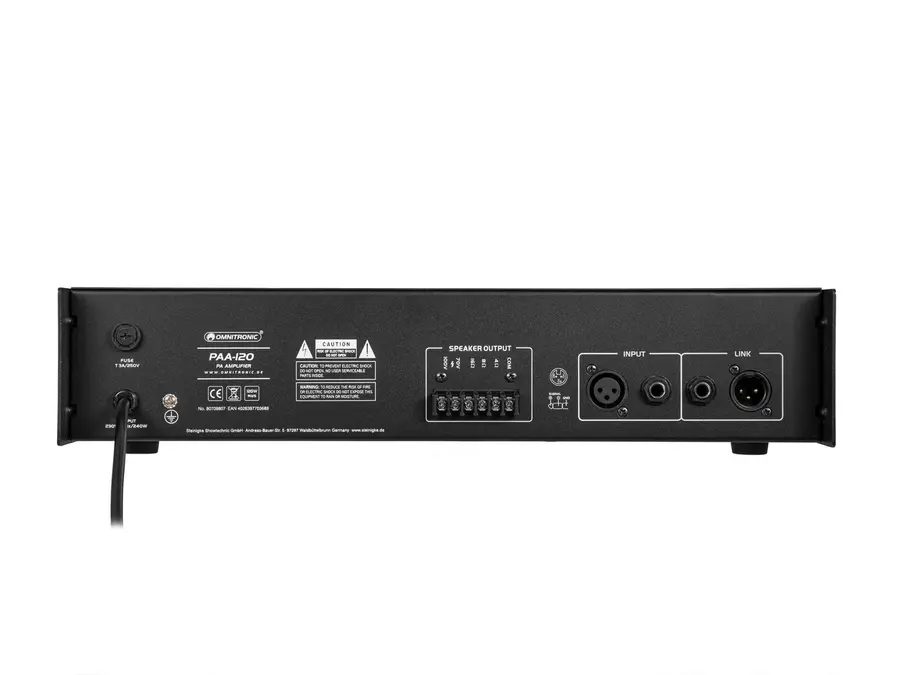

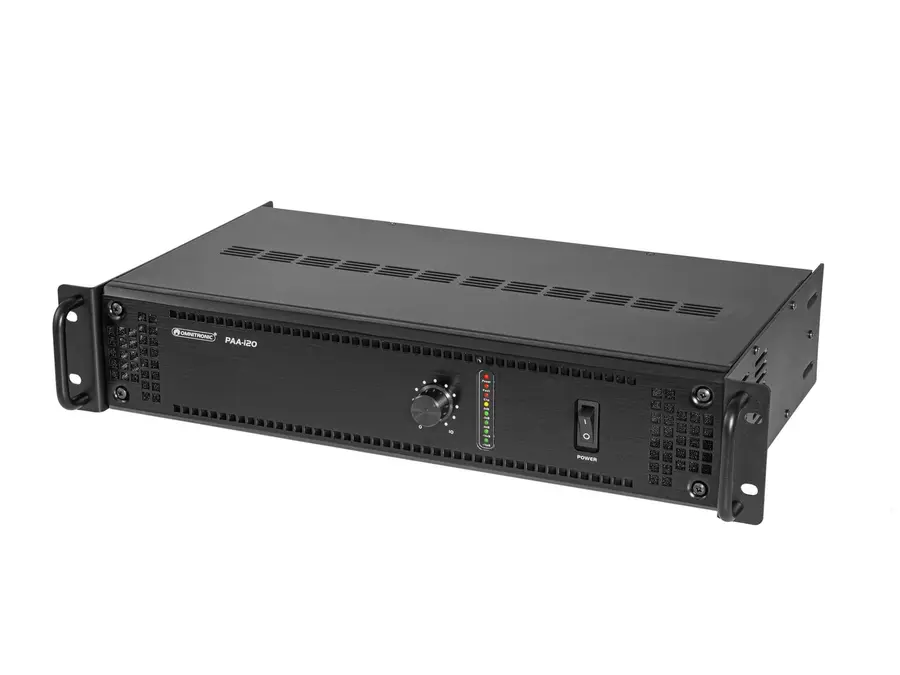

The OMNITRONIC PAA-120 is a 120 W RMS PA power amplifier for fixed installations, including restaurants, bars, hotels and sports centres or gyms. It features one line input, a line feed-through output, master level control and LED indicators for power, level, clip and fault status.
- 120 W RMS output power
- Line input via 3-pin XLR or 6.3 mm mono jack
- Line feed-through output via 3-pin XLR or 6.3 mm mono jack
- Master level control and power switch
- LED indicators for power, level, clip and fault
- Class AB circuitry with soft start
- Protection against overheating, overload, short circuit and DC voltage
- Fan cooling
- Suitable for 4–16 ohm systems and 70 V or 100 V public address systems
- 19-inch rack-mountable, 2 U
Technical specifications
- Power supply: 230 V AC, 50 Hz
- Power consumption: 240 W
- Frequency range: 60–16,000 Hz
- Signal-to-noise ratio: >90 dB
- THD: <0.5% at 1 kHz
- Dimensions: 48.3 × 26.5 × 9.8 cm (W × D × H)
- Weight: 5.35 kg
- Housing colour: black
Included
- Amplifier
- User manual
- 2 mounting brackets
- 4 screws
