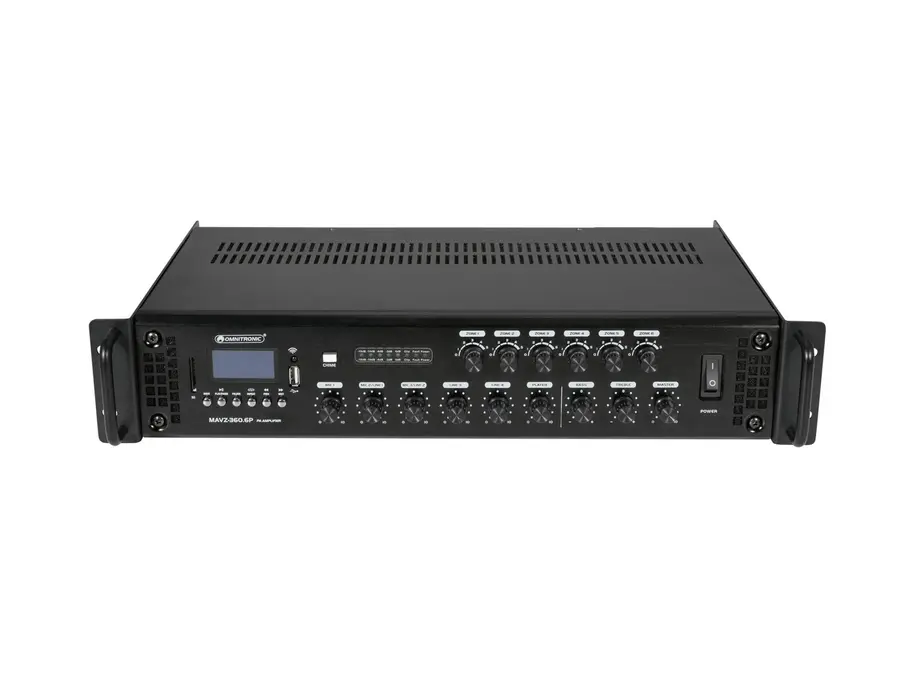

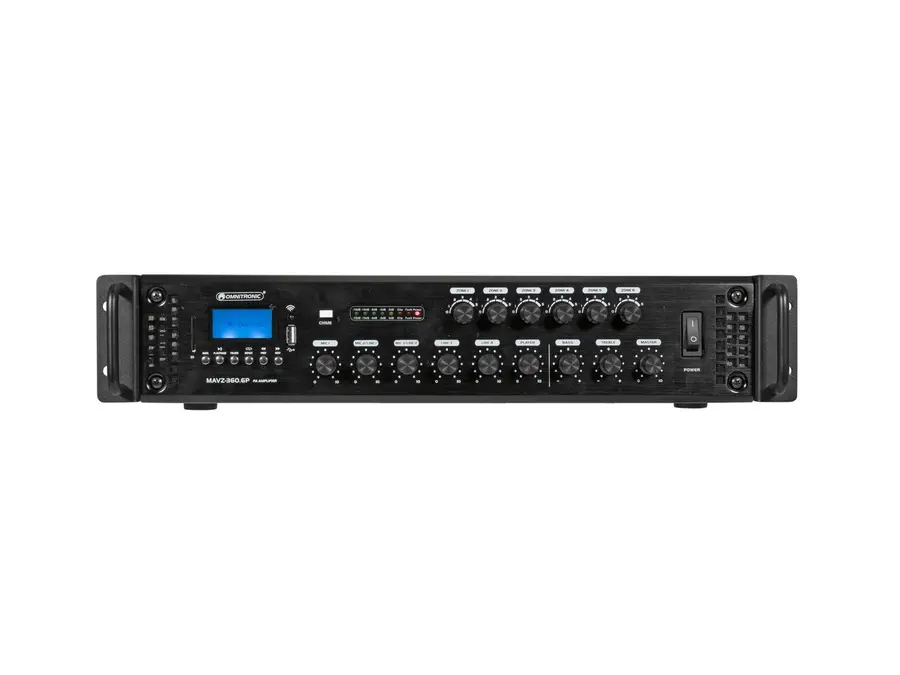

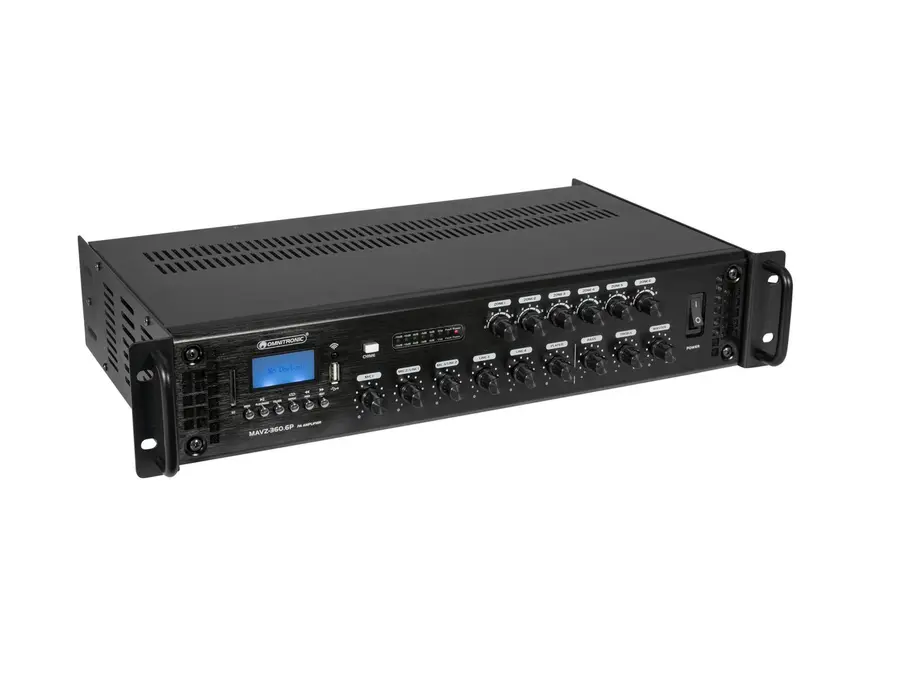

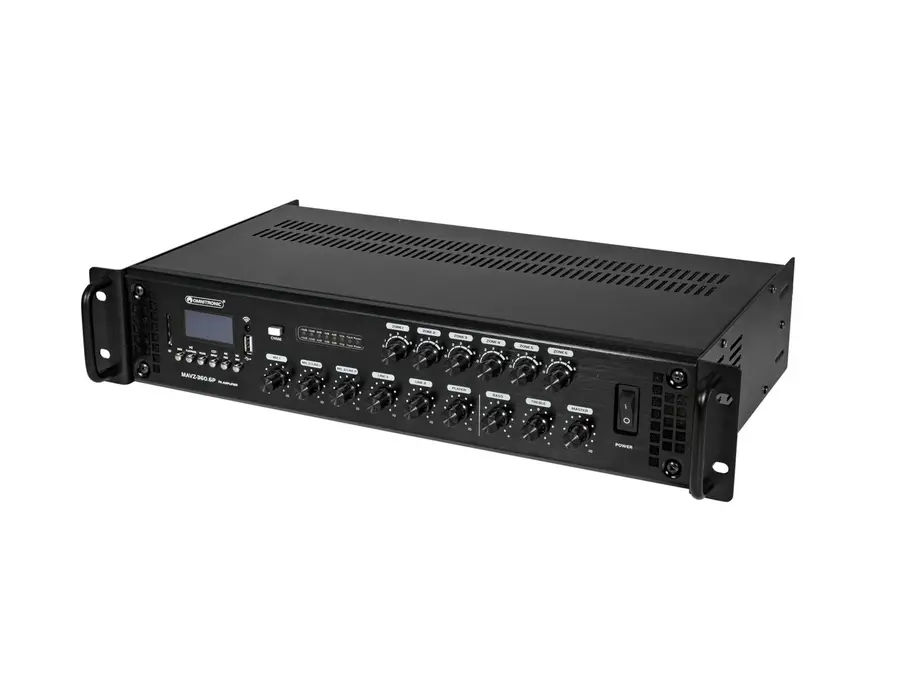

The OMNITRONIC MAVZ-360.6P is a 360 W RMS six-zone PA mixing amplifier with an integrated audio player, Bluetooth and IR remote control. Each of the six PA zones has a separate five-step level control, and the amplifier supports 70 V and 100 V public address systems as well as low-impedance speakers from 4 to 16 ohms.
- Six adjustable PA zones with separate five-step level controls
- Three microphone inputs with individual level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line level
- Line inputs with separate level controls and one stereo RCA line output
- Integrated audio player with USB, SD card and Bluetooth playback
- Supports MP3, WMA, WAV and FLAC files, with folder navigation, repeat and random-play functions
- USB devices and SD cards up to 32 GB, formatted as FAT32; supports up to 999 files
- Master bass and treble controls, master level control and switchable chime
- Five-digit LED level meter and LCD display
- IR remote control and Bluetooth control
- Class AB circuitry with cooling fan
- 19-inch rack-mount design, 2 U high
- Protection against power-on/off transients, overvoltage and short circuits
- Frequency range: 50–18,000 Hz; THD: <0.5% at 1 kHz
- Signal-to-noise ratio: >75 dB for microphone input and >85 dB for line input
Technical specifications
- Power supply: 230 V AC, 50 Hz
- Power consumption: 720 W
- Output power: 360 W RMS

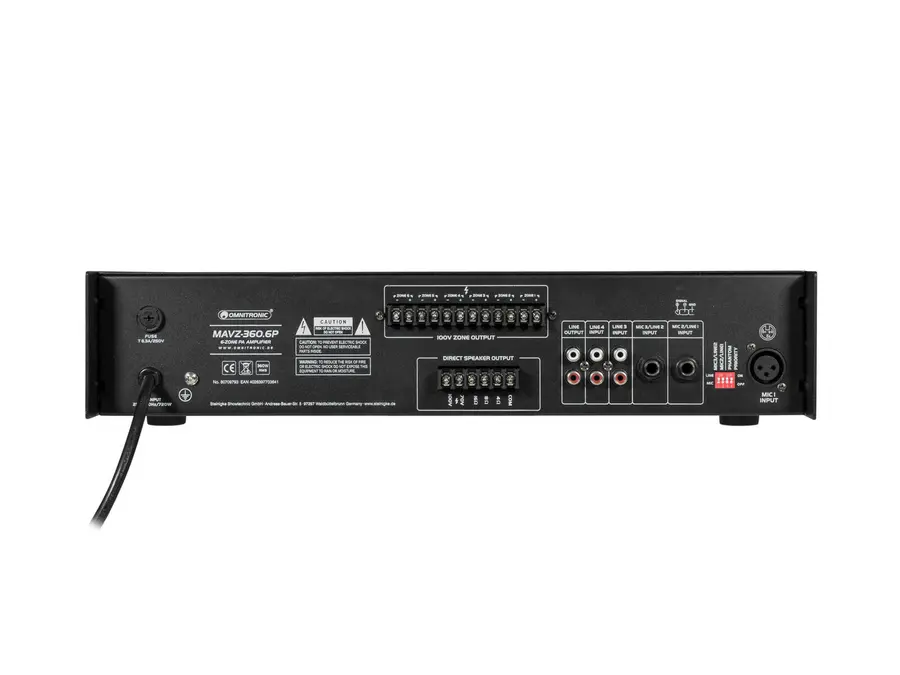

- Connections: microphone inputs via 1 x 3-pin XLR and 2 x 6.3 mm jack, line inputs via stereo RCA, speaker output via screw terminal
- Dimensions: 48.3 × 27.5 × 9.6 cm
- Weight: 7.15 kg
- Colour: black
Included
- IR remote control with CR2025 battery
- Two rack-mount brackets and four screws
- User manual
- Declaration of conformity
