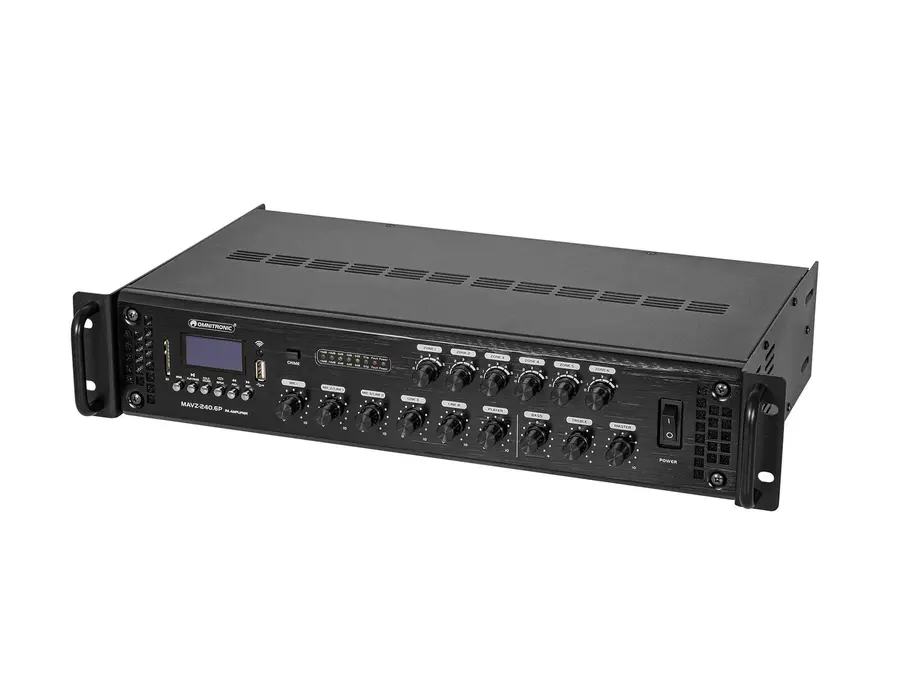

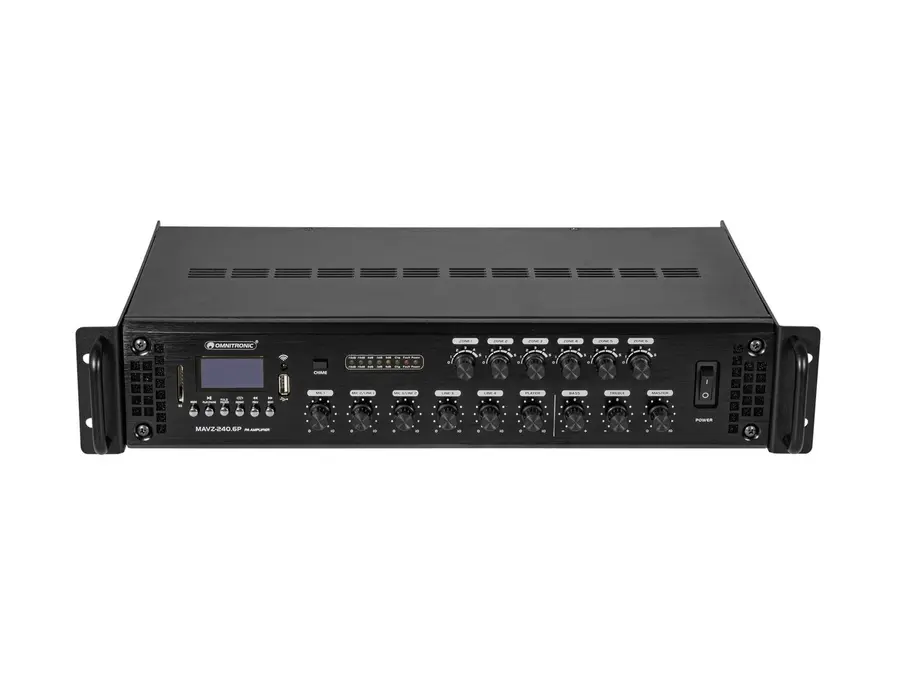

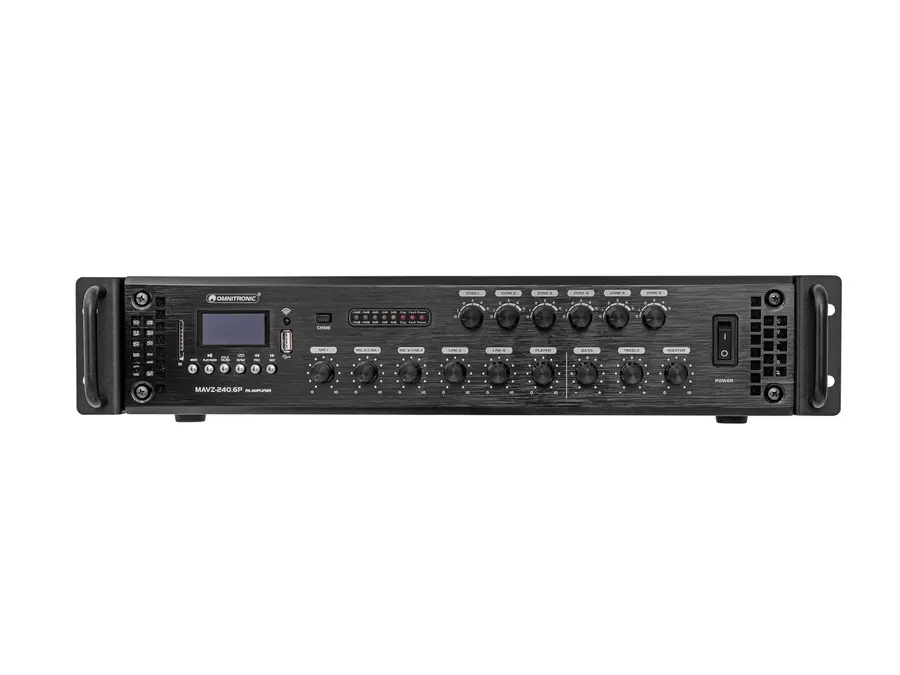

The OMNITRONIC MAVZ-240.6P is a 240 W RMS six-zone PA mixing amplifier with an integrated audio player, Bluetooth and IR remote control. It provides six separately adjustable zone outputs and can drive 70 V and 100 V PA systems as well as low-impedance speakers from 4 to 16 ohms. The amplifier is suited to fixed installations in restaurants, bars, hotels and sports centres or gyms.
- Six PA zone outputs with separate five-step level controls
- Three microphone inputs with separate level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line level
- Line inputs and one line output via stereo RCA connections
- Integrated audio player with USB, SD card and Bluetooth support
- MP3 playback with folder navigation, repeat and random-play functions
- Supports USB devices and SD cards up to 32 GB, formatted as FAT32; up to 999 files
- Switchable chime
- Master volume and two-band tone control for the output signal
- Five-digit LED level meter
- Frequency range: 50–18,000 Hz
- 19-inch rack-mountable housing, 2 U high
- Fan cooling and protection against overvoltage and short circuits
Technical specifications
- Output power: 240 W RMS
- Power supply: 230 V AC, 50 Hz
- Power consumption: 480 W
- Signal-to-noise ratio: >75 dB for microphone inputs, >85 dB for line inputs
- THD: <0.5% at 1 kHz
- Dimensions: 48.3 × 32 × 9.2 cm
- Weight: 6.90 kg
- Housing colour: black
Included
- IR remote control with built-in CR2025 lithium-manganese button cell
- User manual
- Two holders and four screws
