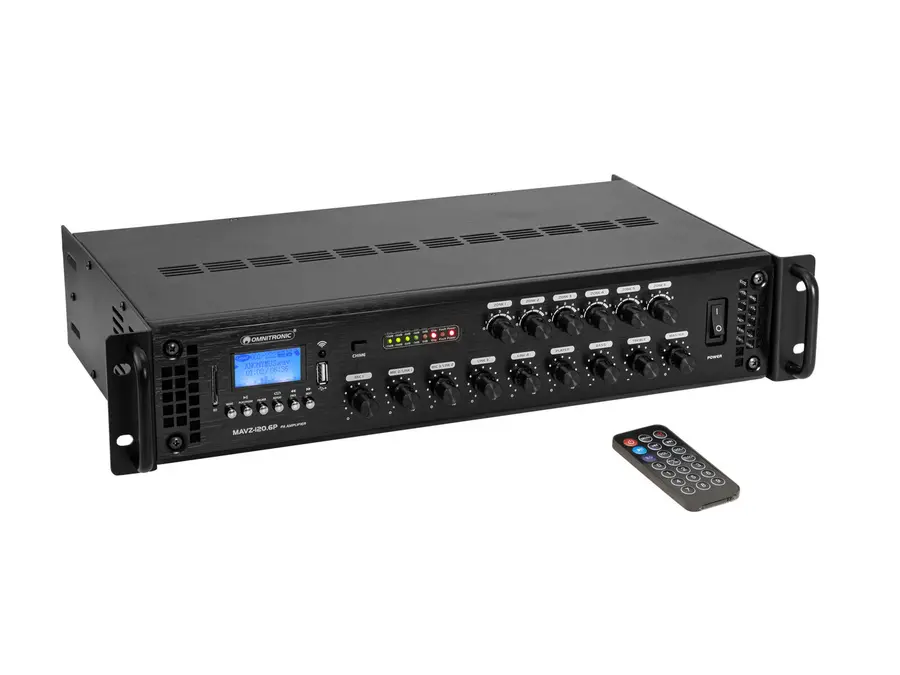

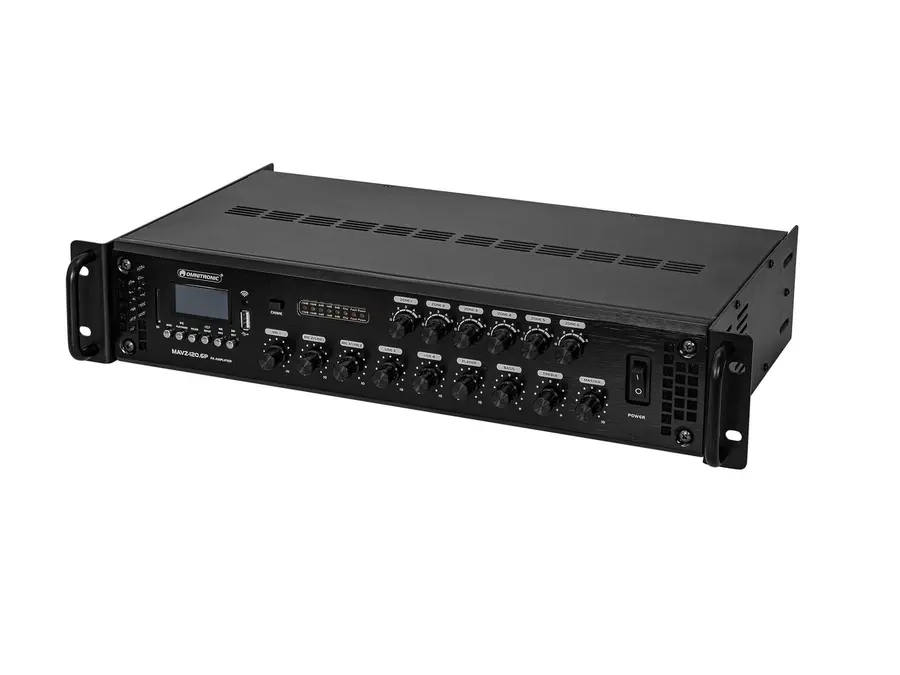

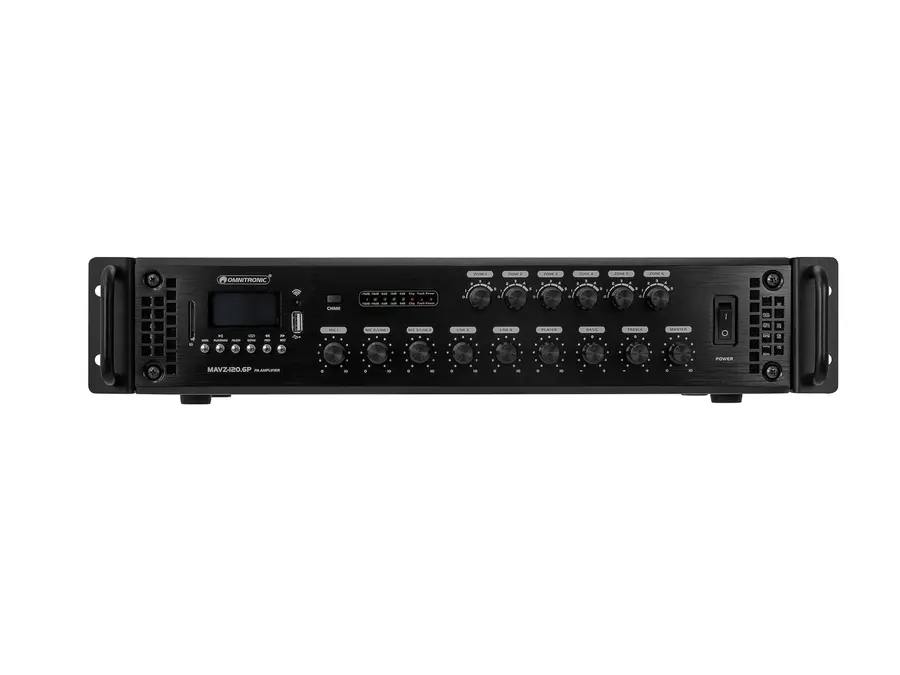

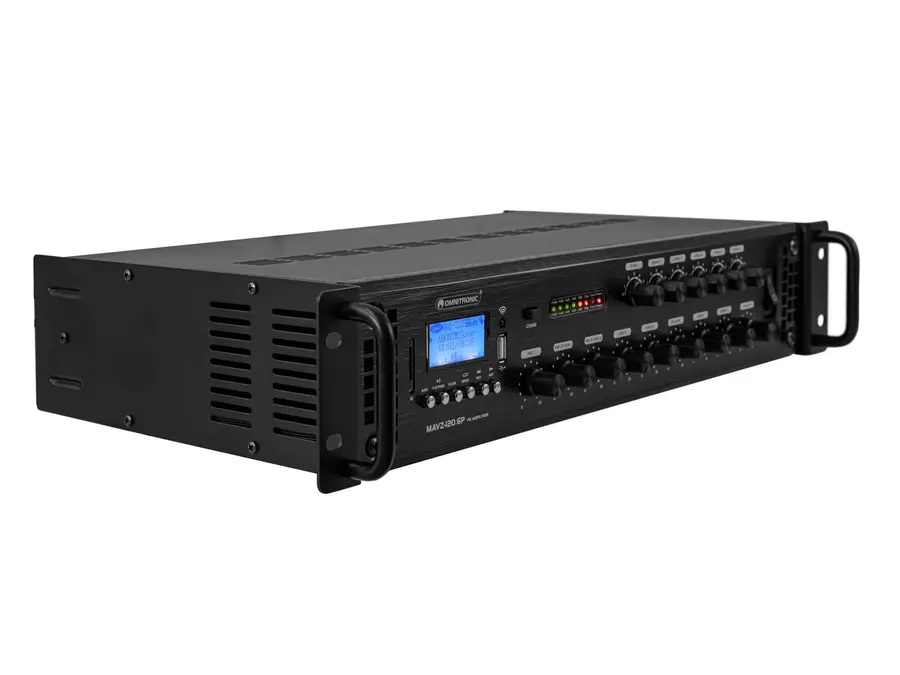

The OMNITRONIC MAVZ-120.6P is a 120 W RMS PA mixing amplifier with six adjustable zones, an integrated audio player and remote control. It supports 70 V and 100 V PA systems as well as low-impedance speakers from 4 to 16 ohms, making it suitable for installations in restaurants, bars, hotels, sports centres and gyms.
- Six PA zone outputs with separate five-step level controls
- Three microphone inputs with individual level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line operation
- Two line inputs and one line output
- Integrated audio player for MP3 files via USB, SD card or Bluetooth
- Folder navigation, repeat functions and random play; supports up to 999 files and USB devices/SD cards up to 32 GB in FAT32 format
- Master controls for treble, bass and overall level, plus a switchable chime
- LCD display and five-digit LED level meter
- IR remote control and Bluetooth control
- Frequency range: 50–18,000 Hz; THD: <0.5% at 1 kHz
- Signal-to-noise ratio: >75 dB for microphone input and >85 dB for line input
- Class AB circuitry with cooling fan and protection against current limiting, short circuit, overvoltage and power-on/off transients
- 19-inch rack-mountable housing, 2 U high

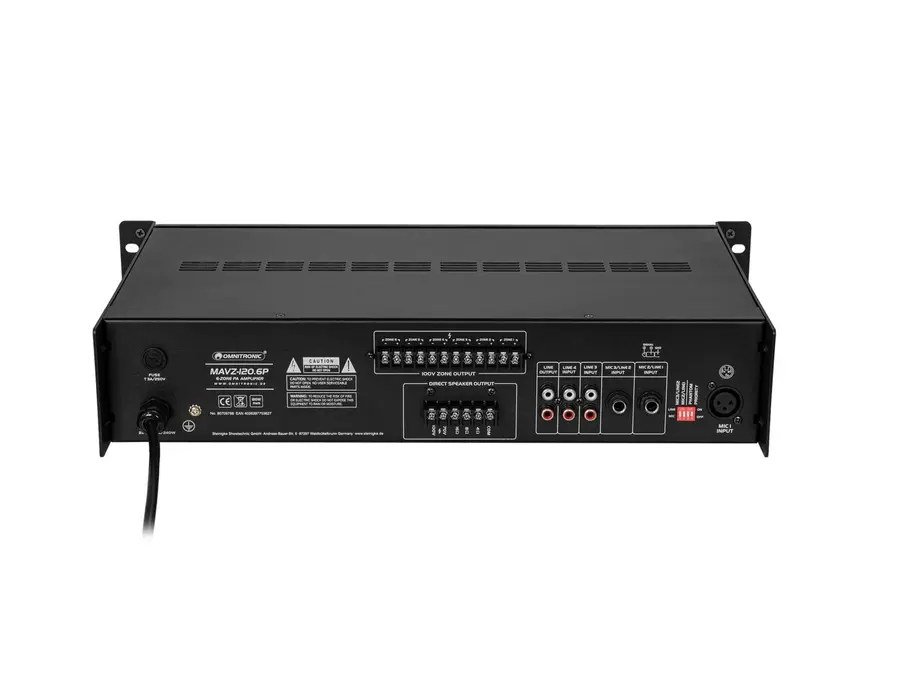

Connections and specifications
- Microphone input via 1 x 3-pin XLR and 2 x 6.3 mm unbalanced jack inputs
- Line input and output via stereo RCA
- Speaker output via screw terminal
- Power supply: 230 V AC, 50 Hz; power consumption: 240 W
- Dimensions: 48.3 x 32 x 9.2 cm; weight: 5.70 kg
- Black housing
Included
- Remote control with CR2025 lithium manganese button cell
- 2 holders and 4 screws
- User manual
