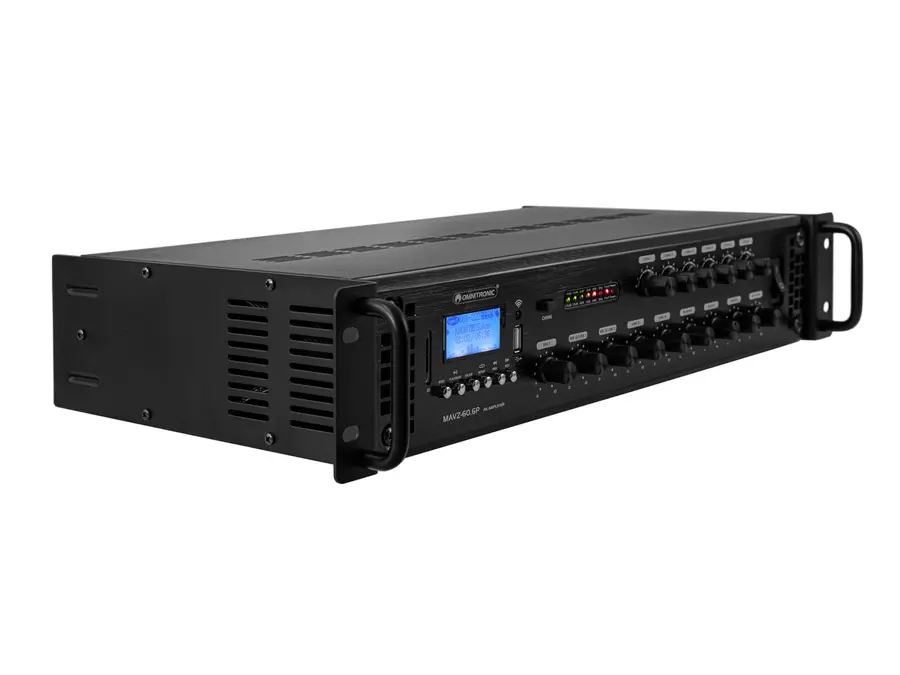

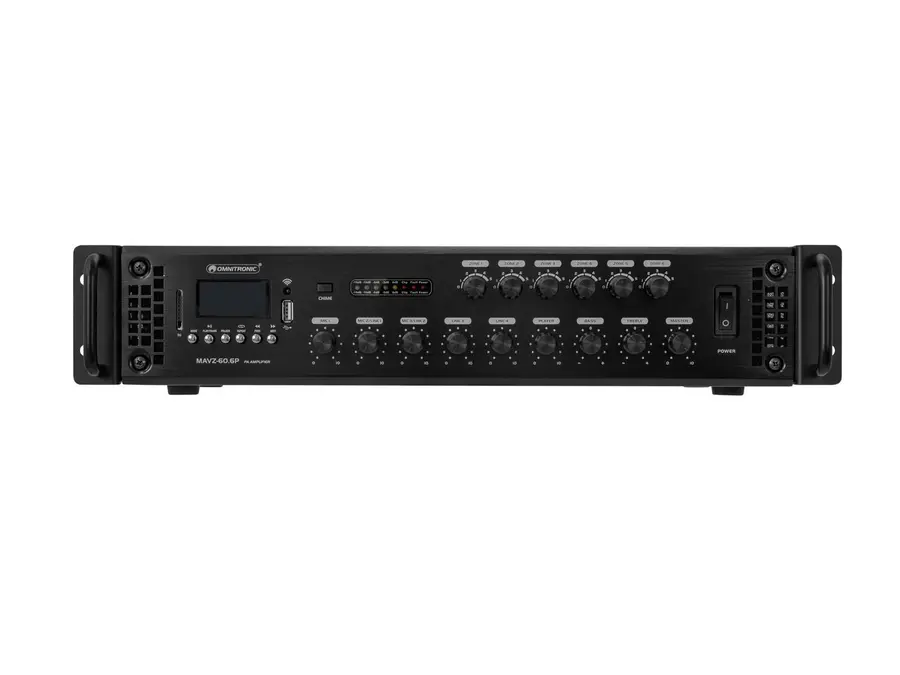

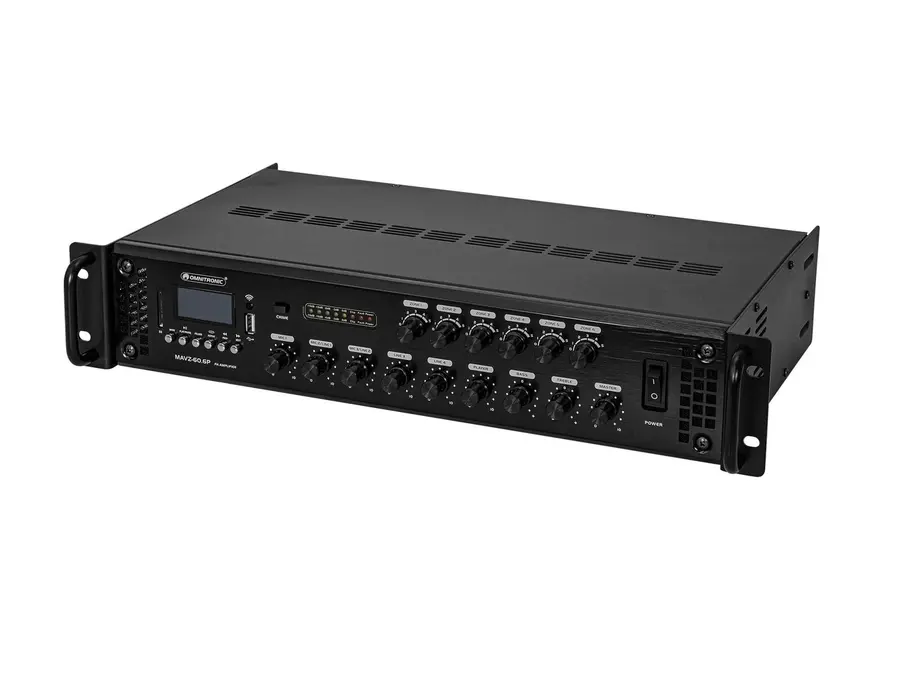

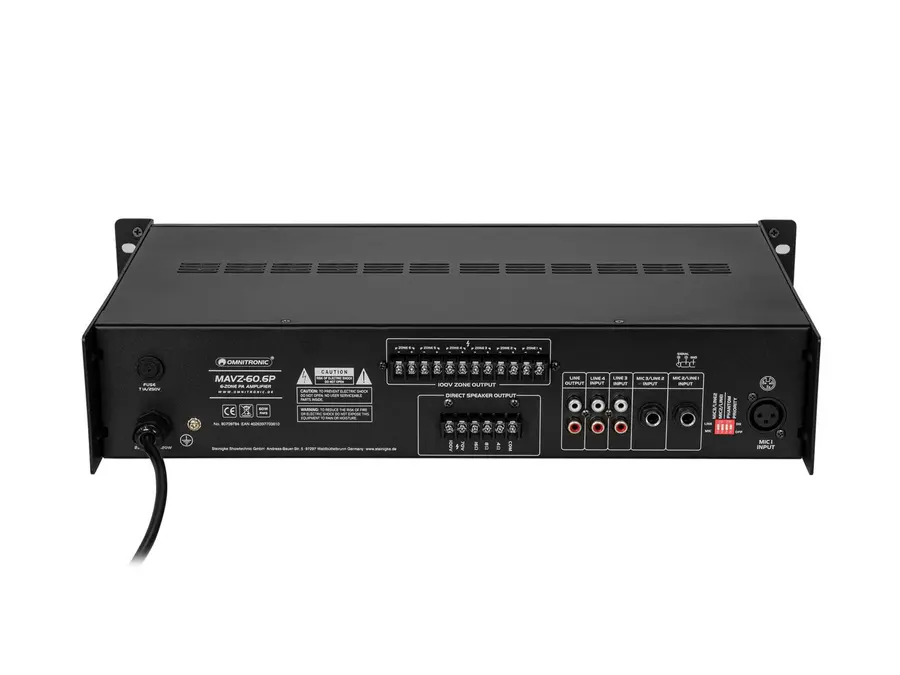

The OMNITRONIC MAVZ-60.6P is a 6-zone PA mixing amplifier with a built-in audio player, IR remote control and Bluetooth. It delivers 60 W RMS and supports six separately adjustable PA zones, low-impedance speakers from 4 to 16 ohms, and 70 V and 100 V PA systems. Suitable applications include fixed installations in restaurants, bars, hotels and sports centres or gyms.
- Six PA zone outputs with separate five-step level controls
- Three microphone inputs with separate level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line level
- Two line inputs with separate level controls and one line output
- Audio player with USB, SD card and Bluetooth playback, MP3 support, folder navigation, repeat functions and random play
- USB devices and SD cards up to 32 GB, formatted as FAT32; supports up to 999 files
- Master treble and bass controls, master level control and a five-digit LED level meter
- Switchable chime function
- Frequency range: 50–18,000 Hz
- THD: <0.5% at 1 kHz
- Signal-to-noise ratio: >75 dB for microphone inputs and >85 dB for line inputs
- Class AB circuitry with fan cooling and protection against power-on/off transients, overvoltage and short circuits
- 19-inch rack-mountable housing, 2 U high; dimensions: 48.3 × 32 × 9.2 cm; weight: 5.10 kg
- 230 V AC, 50 Hz operation; power consumption: 120 W
Included
- IR remote control with built-in CR2025 lithium manganese button cell
- Two holders and four screws
- User manual
