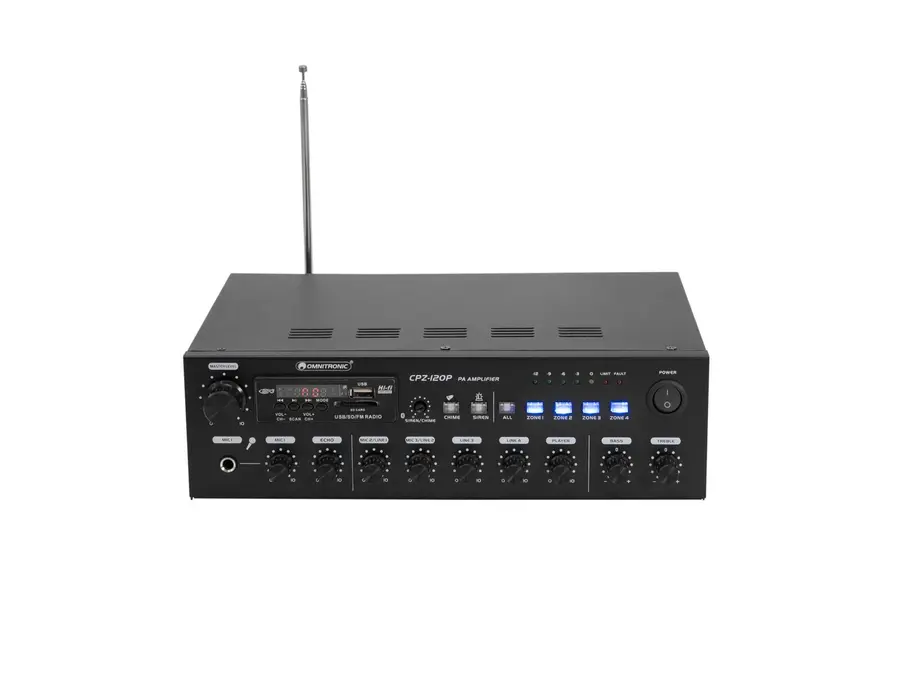

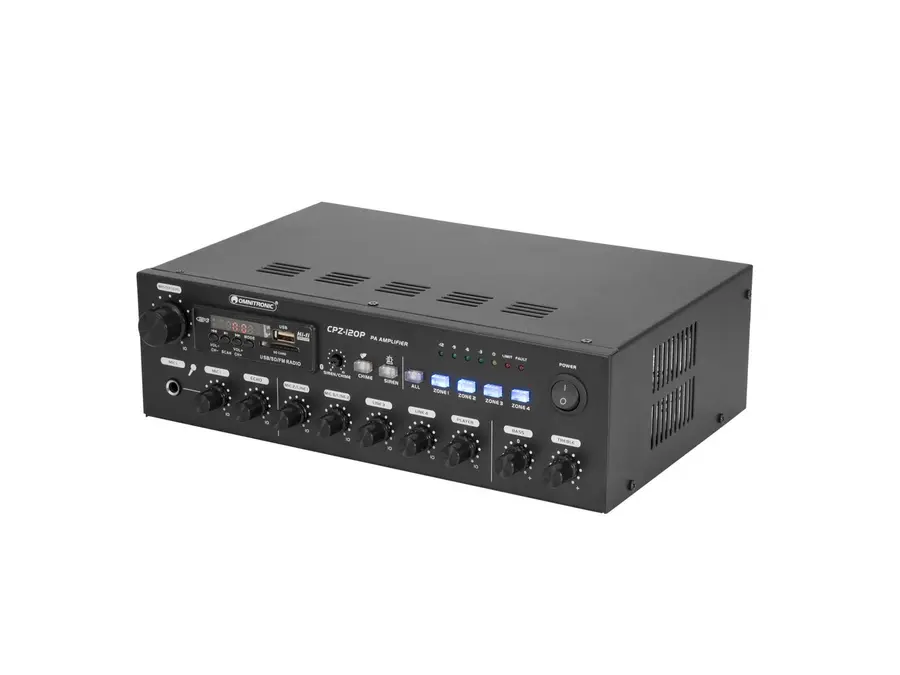

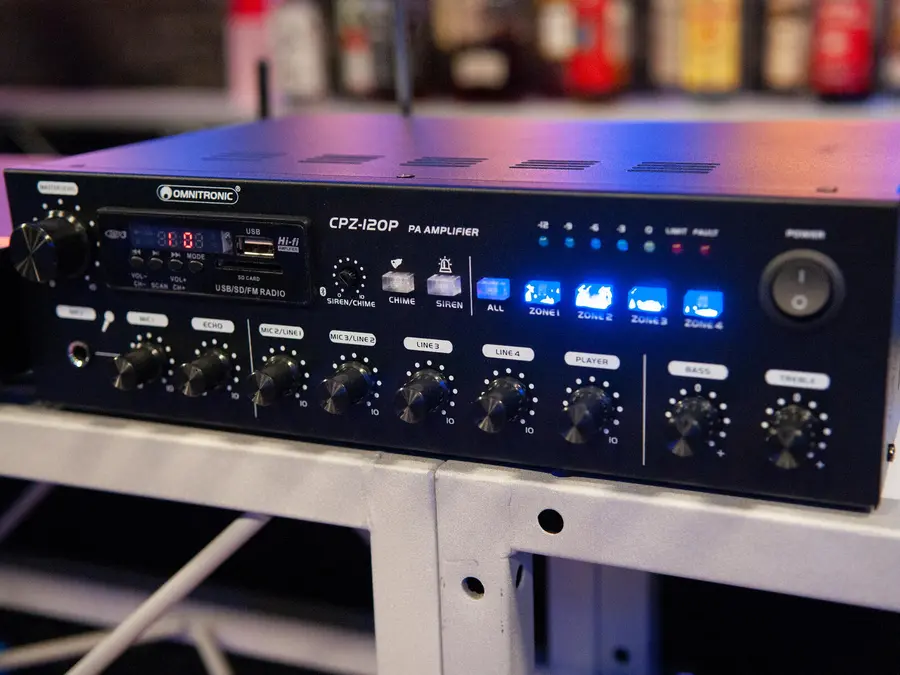

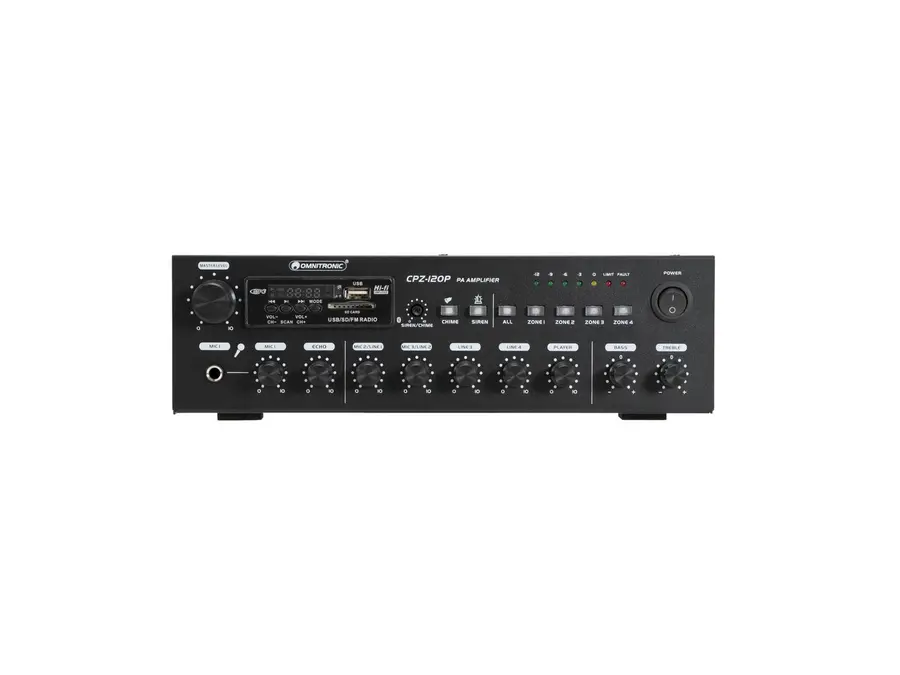

The OMNITRONIC CPZ-120P is a 120 W RMS PA mixing amplifier with four independently switchable zones, an integrated audio player and control via Bluetooth or IR remote control. It supports 70 V and 100 V PA systems as well as low-impedance speakers from 4 to 16 ohms, making it suitable for installations in restaurants, bars, hotels and sports centres.

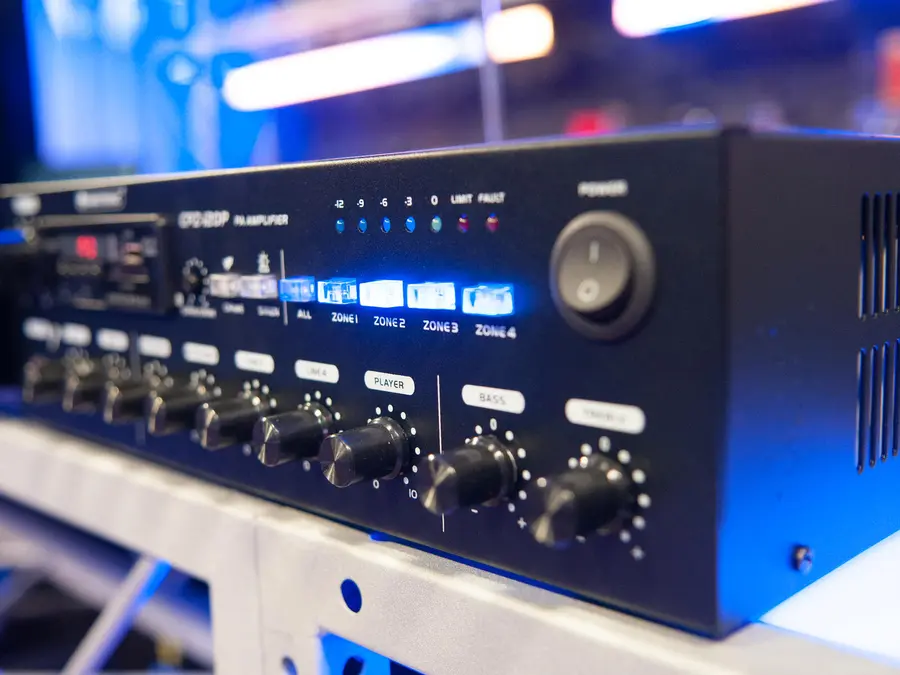

• Four PA zone outputs, independently switchable on the front panel
• Audio player with USB, SD card, Bluetooth and FM tuner with auto scan; MP3 playback
• Three microphone inputs with separate level controls. Mic 1 features phantom power, a priority circuit and adjustable echo; Mic 2 and Mic 3 can be switched between mic and line level
• Two line inputs with separate level controls and one line output
• Adjustable siren and chime
• Master treble and bass controls and a five-segment LED level meter
• Class D circuitry with overload, short-circuit, limiter and overheat protection
• Operates from 100–240 V AC or 24 V emergency power
• Bluetooth device name: OMNITRONIC
• Desktop console housing with 2 U dimensions and built-in cooling fan

Technical specifications

• Output power: 120 W RMS
• Speaker impedance: 70 V, 100 V or 4–16 ohms

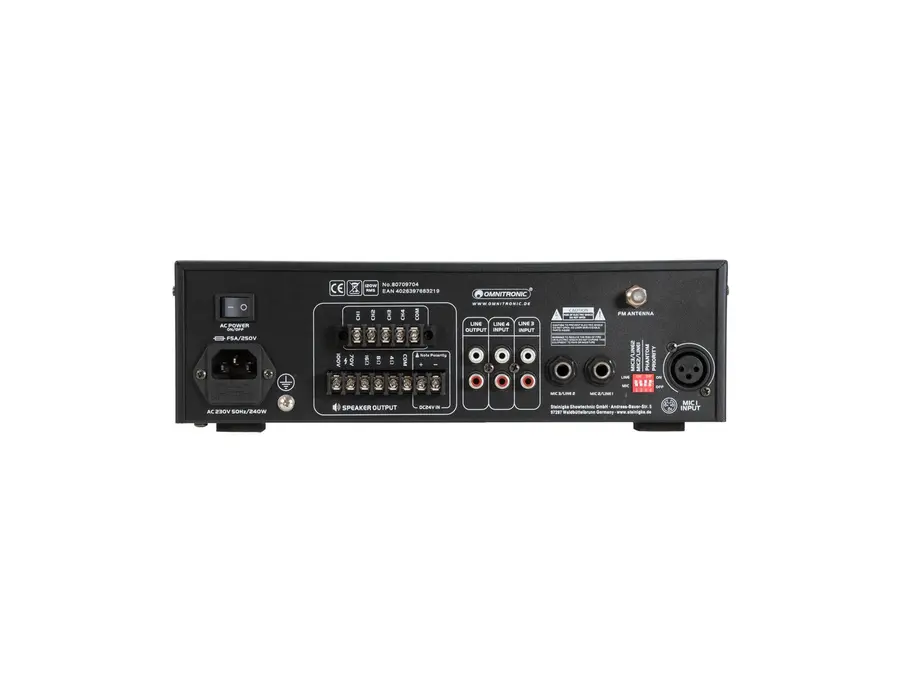

• Inputs: 1 x 3-pin XLR microphone input, 2 x 6.3 mm jack mic/line inputs and 2 x stereo RCA line inputs
• Output: 1 x stereo RCA line output at 0.774 V and speaker output via screw terminal
• Power consumption: 240 W
• Dimensions: 30.3 x 22 x 9.1 cm
• Weight: 3.85 kg

Included

• IR remote control with built-in CR2025 lithium-manganese button cell
• Antenna
• Power cord
• User manual
• Declaration of conformity
