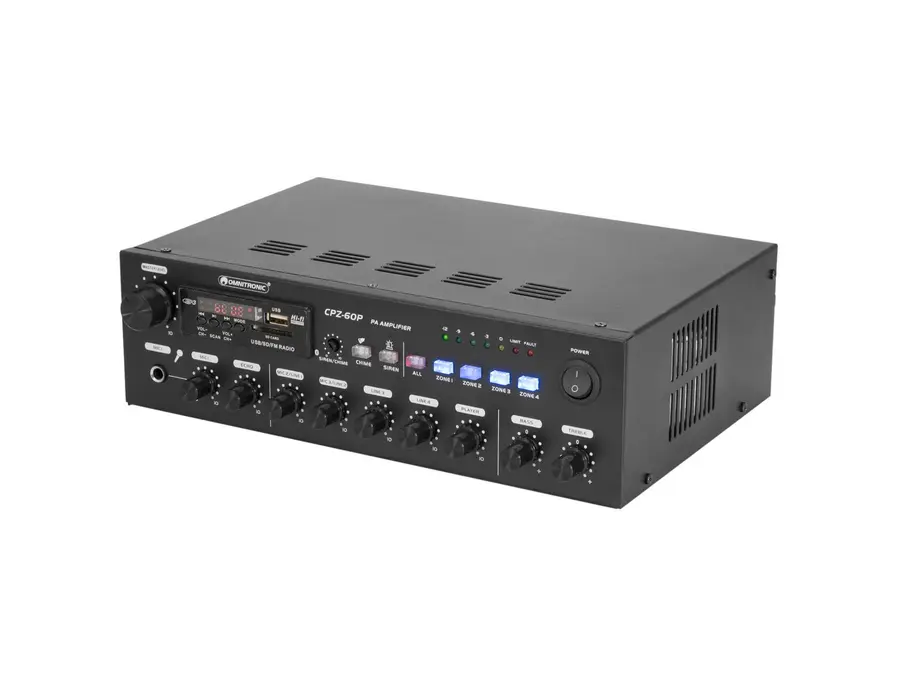

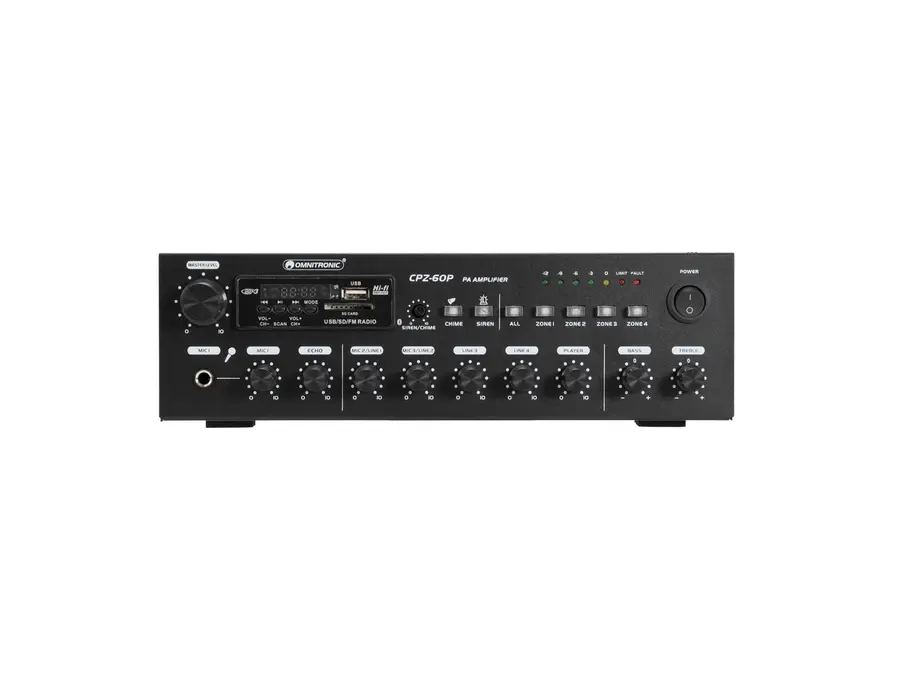

The OMNITRONIC CPZ-60P is a 60 W RMS, 4-zone PA mixing amplifier with an integrated audio player, Bluetooth control and IR remote control. The four PA zones can be switched independently from the front panel. It is suitable for installations in restaurants, bars, hotels, sports centres and gyms.
- Four independently switchable PA zones
- Supports 70 V and 100 V PA systems as well as low-impedance speakers from 4 to 16 ohms
- USB port, SD card slot, Bluetooth and FM tuner with auto scan for MP3 playback
- Three microphone inputs with separate level controls; Mic 1 features phantom power, a priority circuit and adjustable echo
- Mic 2 and 3 can be switched between microphone and line level
- Two line inputs with separate level controls and one line output
- Adjustable siren and chime
- Master bass and treble controls for the output signal
- 5-digit LED level meter
- Class D circuitry with overload, short-circuit, limiter and overheat protection
- Desktop console housing, 2 U high
Specifications
- Output power: 60 W RMS
- Power supply: 100–240 V AC, 50/60 Hz, or 24 V emergency power
- Power consumption: 120 W

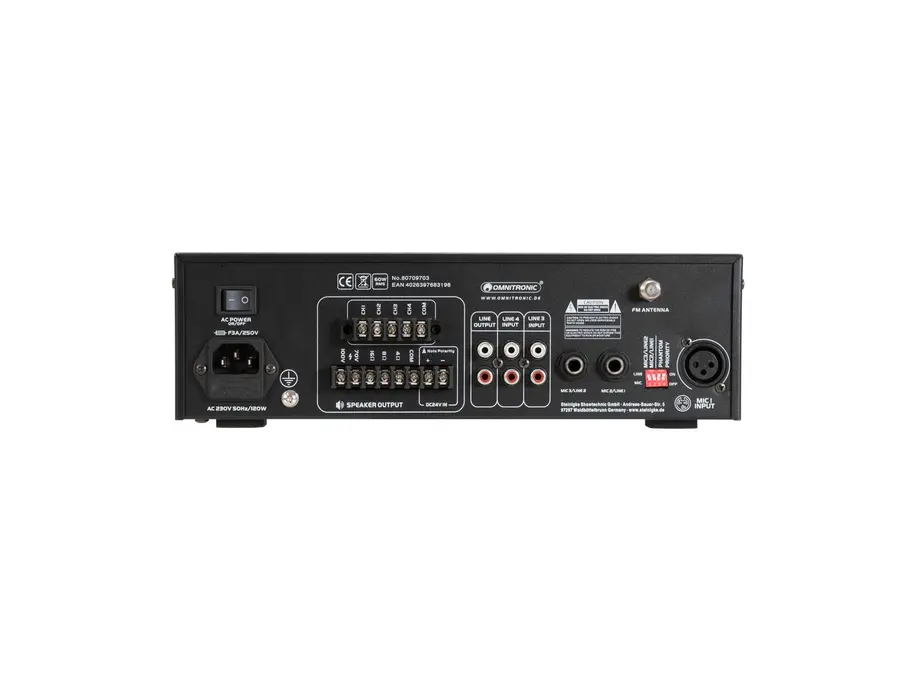

- Connections: 1 x 3-pin XLR microphone input, 2 x 6.3 mm jack mic/line inputs, 2 x stereo RCA line inputs, 1 x stereo RCA line output and speaker output via screw terminal
- Dimensions: 30.3 x 22 x 9.1 cm
- Weight: 3.60 kg
Included
- Power cord

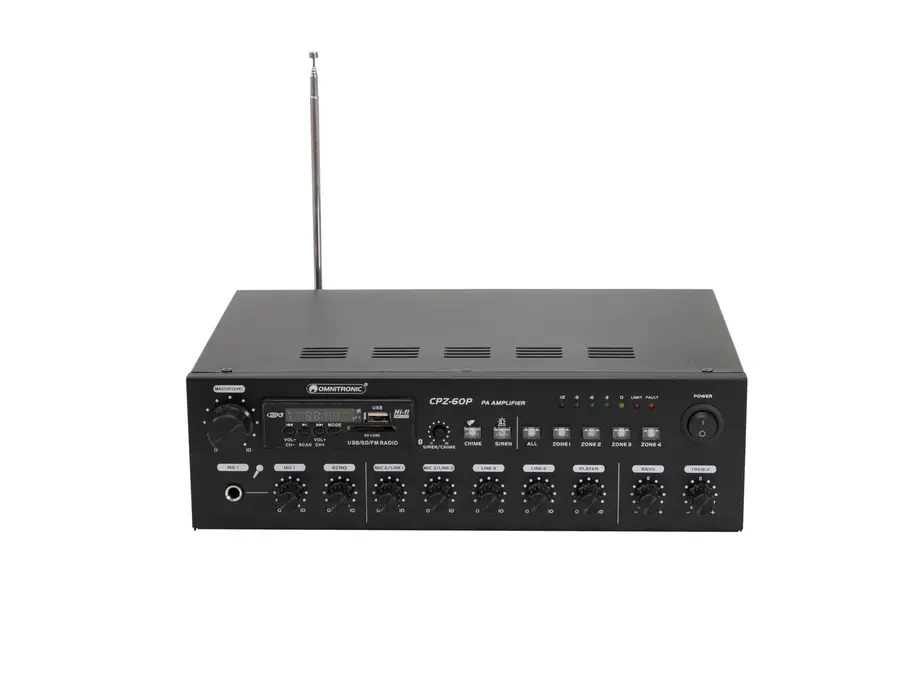

- Antenna
- IR remote control with CR2025 battery
- User manual
- Declaration of conformity
