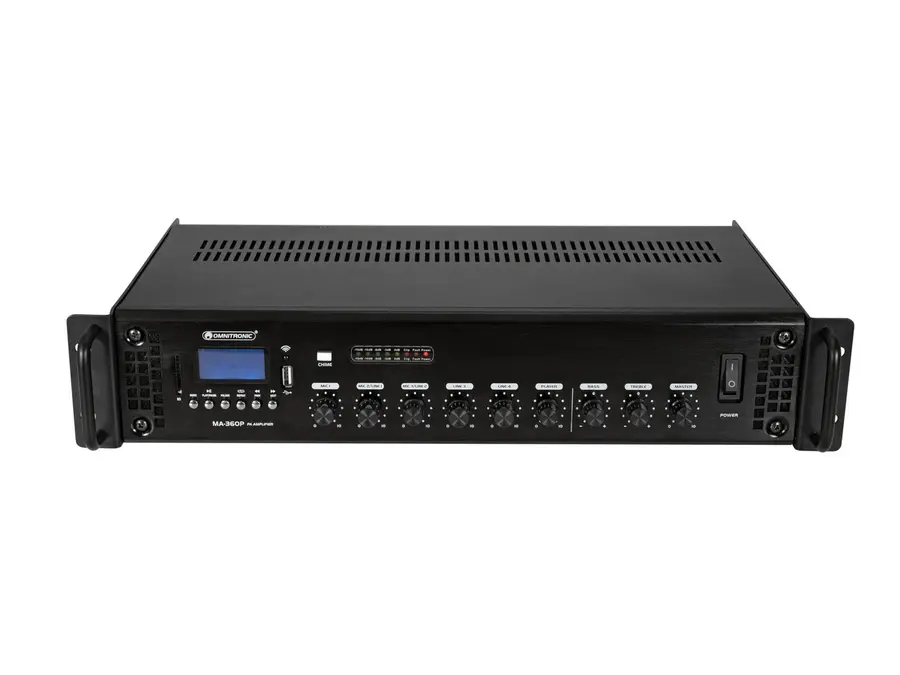

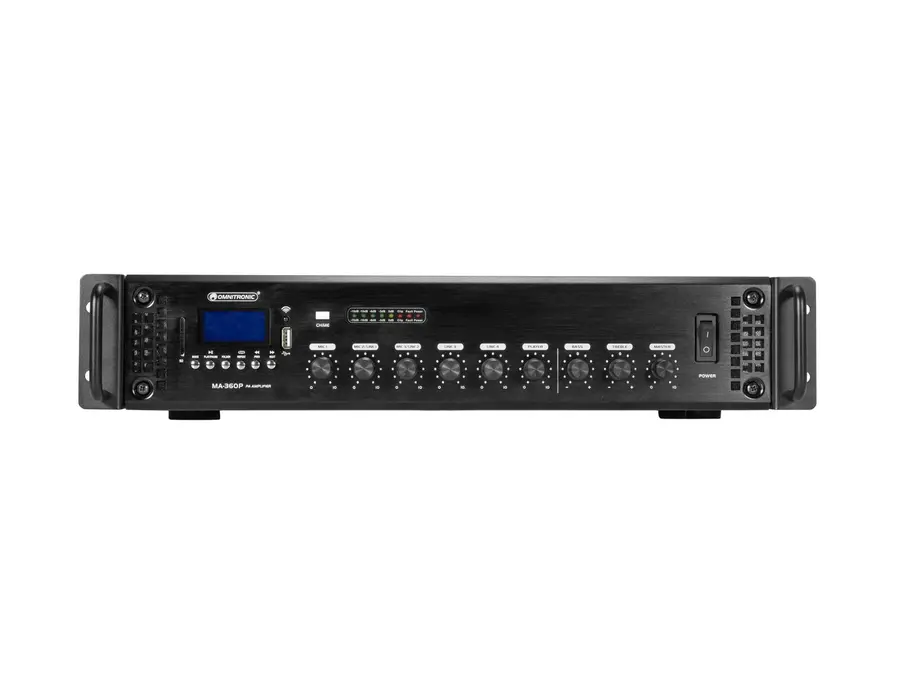

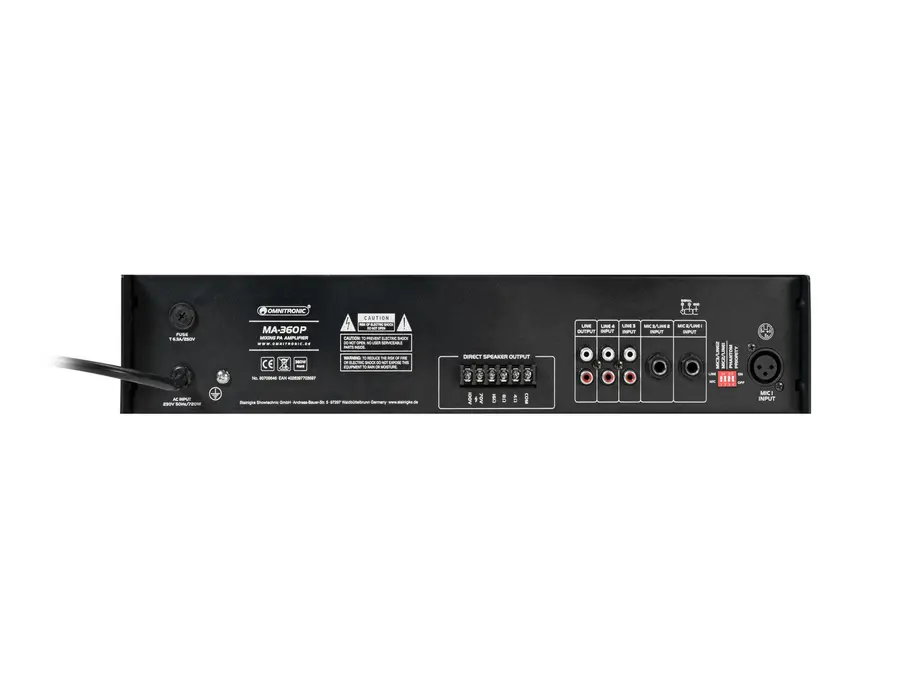

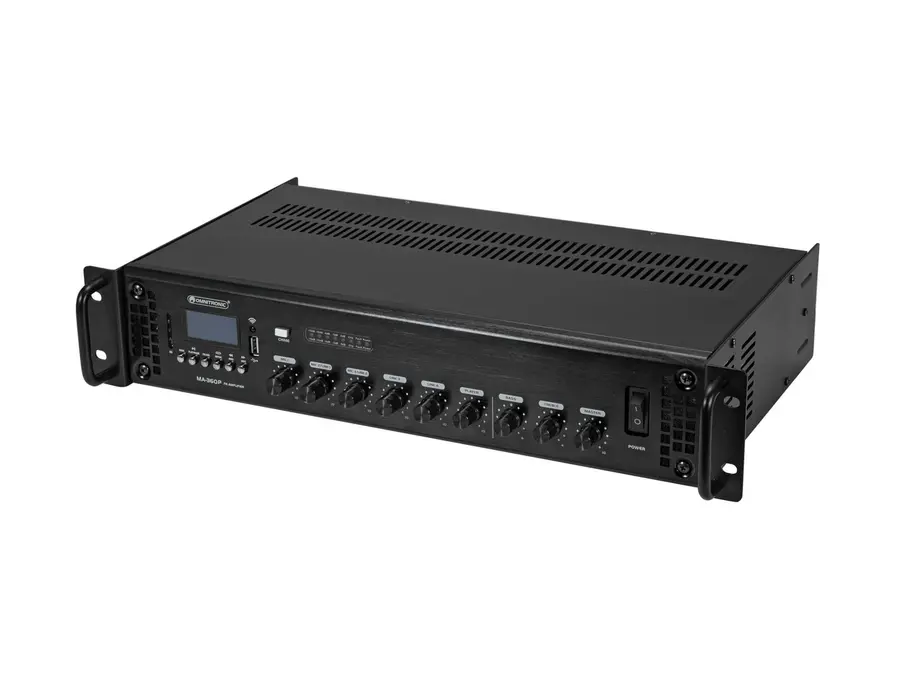

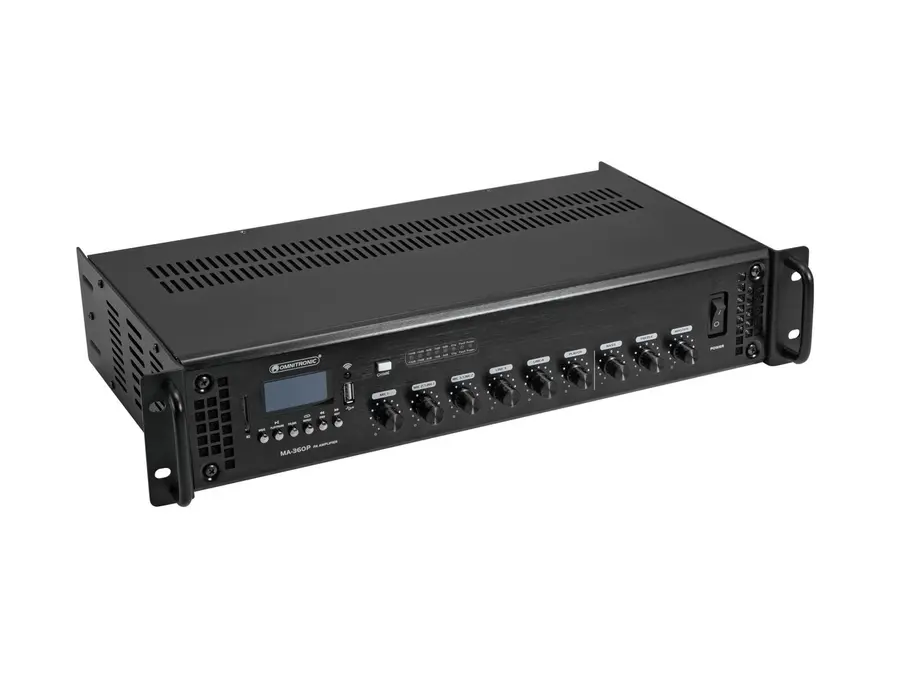

The OMNITRONIC MA-360P is a 360 W RMS PA mixing amplifier with an integrated audio player, Bluetooth and IR remote control. It is designed for fixed installations such as restaurants, bars, hotels and sports centres, and supports both 70/100 V PA systems and 4–16 ohm speaker loads.
- Wireless music streaming from smartphones, tablets and other mobile devices via Bluetooth
- Audio player with USB port and SD card slot, supporting MP3, WMA, WAV and FLAC files
- Folder navigation, repeat functions and random play; supports USB devices and SD cards up to 32 GB in FAT32 format, with up to 999 files
- Three microphone inputs with separate level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line level
- Two line inputs with separate level controls and one line output
- Master bass and treble controls, master level control and a five-digit LED level meter
- Switchable chime function
- Class AB circuitry with overload, short-circuit, limiter and overheat protection
- Fan cooling
- 19-inch rack installation, 2 U
Technical specifications
- Output power: 360 W RMS
- Frequency range: 50–18,000 Hz
- Signal-to-noise ratio: >75 dB for microphone input, >85 dB for line input
- THD: <0.5% at 1 kHz
- Power supply: 230 V AC, 50 Hz
- Power consumption: 720 W
- Dimensions: 48.3 × 32 × 9.2 cm
- Weight: 7 kg
- Housing: black
Included
- IR remote control with built-in CR2025 battery
- Two rack-mounting brackets and four screws
- User manual
- Declaration of conformity
