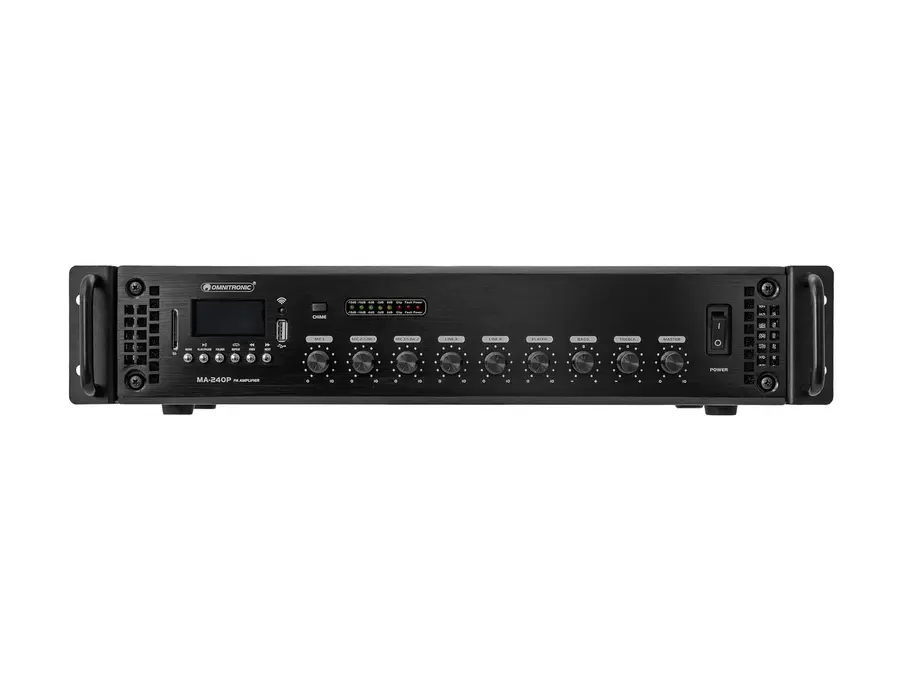

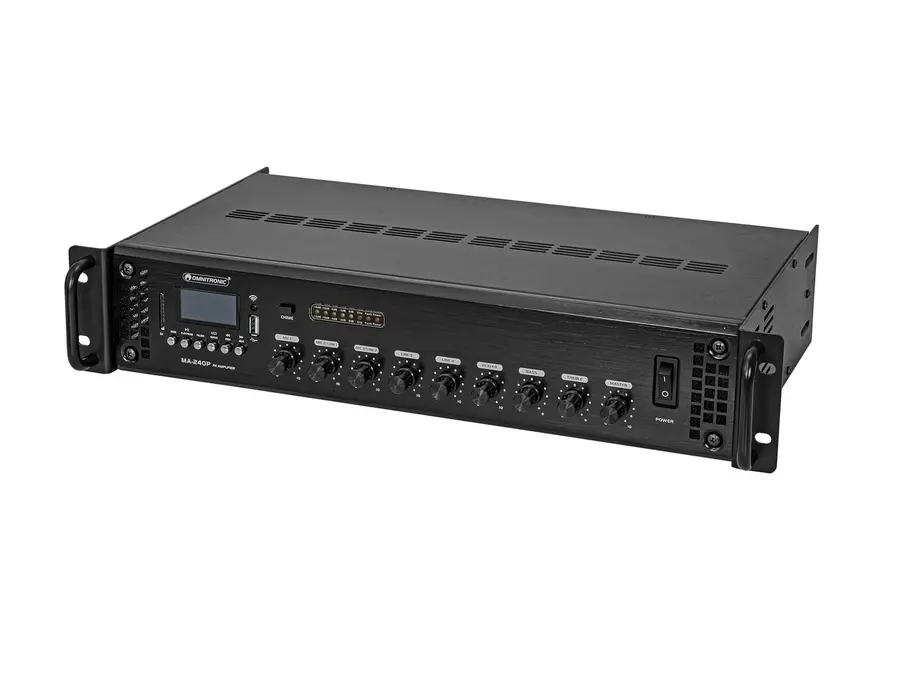

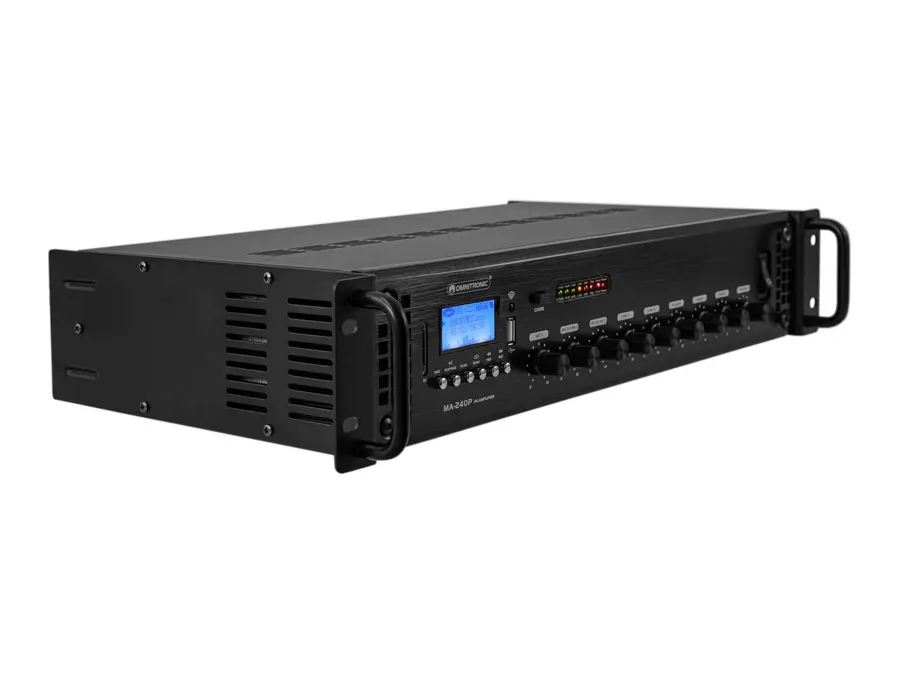

The OMNITRONIC MA-240P is a 240 W RMS PA mixing amplifier with an integrated audio player, Bluetooth and IR remote control. It supports MP3 playback from USB devices and SD cards, as well as wireless music streaming from mobile devices such as smartphones and tablets. The amplifier is suitable for installations in restaurants, bars, hotels and sports centres or gyms.
- 240 W RMS output power for 70 V and 100 V public address systems or 4–16 ohm speaker systems
- Integrated audio player with USB, SD and Bluetooth playback
- MP3 support, folder navigation, repeat functions and random play
- USB devices and SD cards up to 32 GB, FAT32; supports up to 999 files
- Three microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable between microphone and line level
- Line inputs with separate level controls and one line output
- Master bass and treble controls
- Switchable chime
- LCD display and five-digit LED level meter
- Protection functions for overload, short circuit, overheating and limiting
- 19-inch rack installation, 2 U
- Cooling fan
Technical specifications
- Frequency range: 50–18,000 Hz
- Signal-to-noise ratio: >75 dB for microphone input, >85 dB for line input
- THD: <0.5% at 1 kHz
- Power supply: 230 V AC, 50 Hz
- Power consumption: 480 W
- Class I protection
- Dimensions: 48.3 × 32 × 9.2 cm
- Weight: 6.80 kg

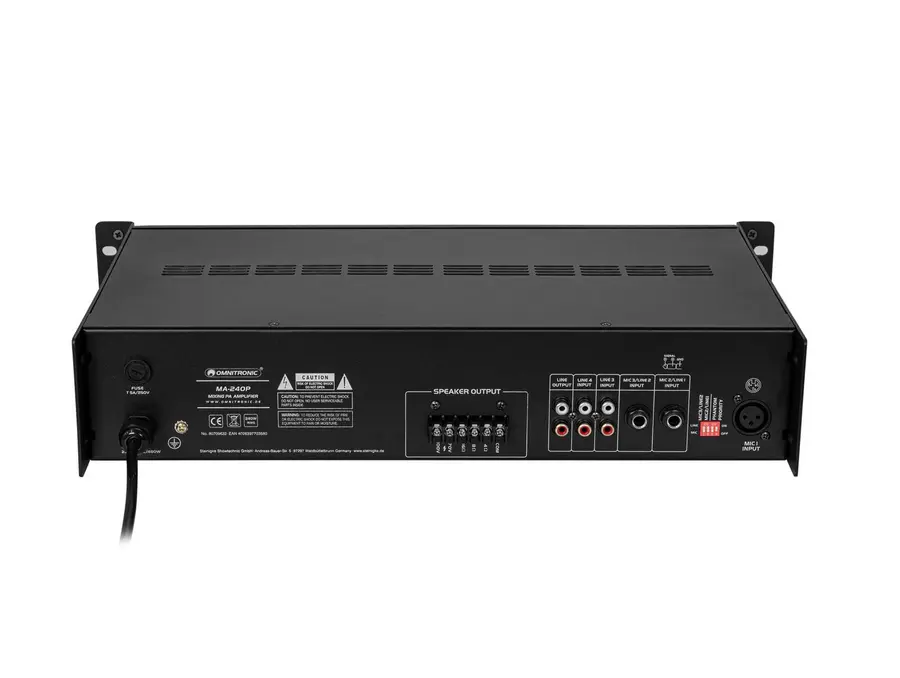

- Connections: microphone inputs via 6.3 mm jack and 3-pin XLR, line inputs and output via stereo RCA, speaker output via screw terminal
Included

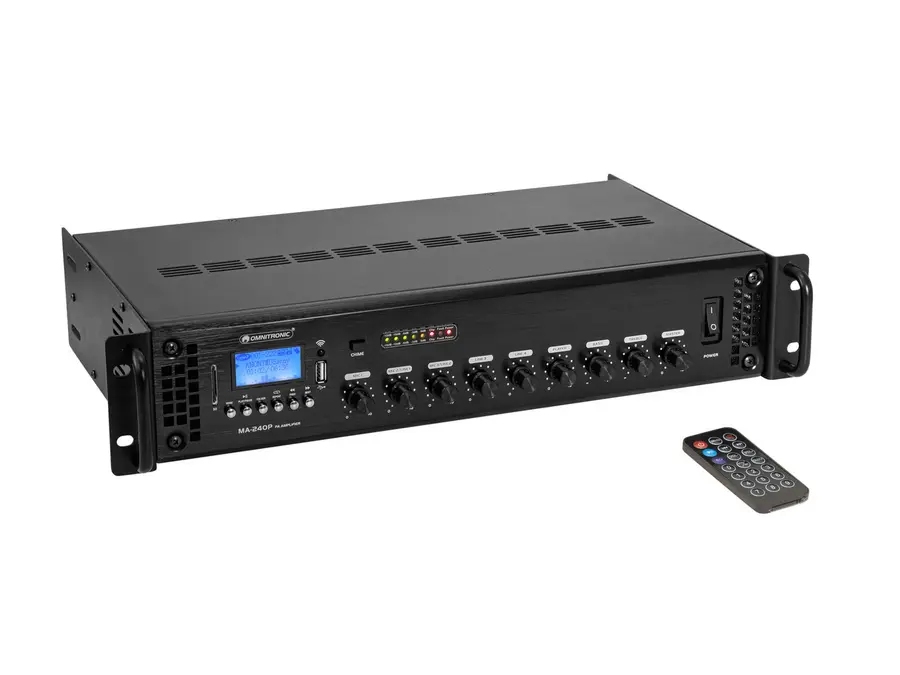

- IR remote control with built-in CR2025 lithium-manganese button cell
- User manual
- Two holders and four screws
