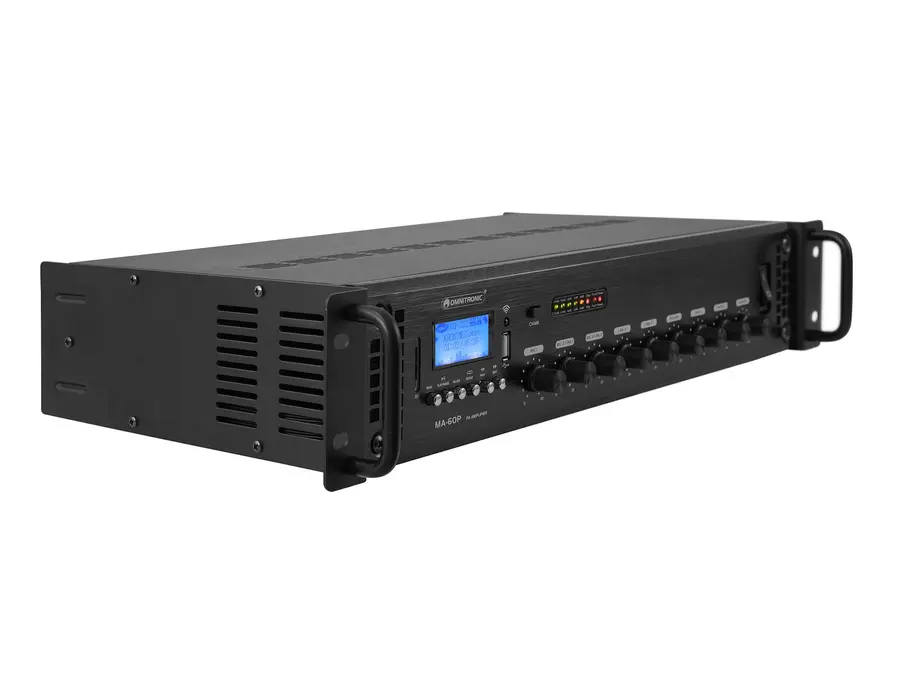

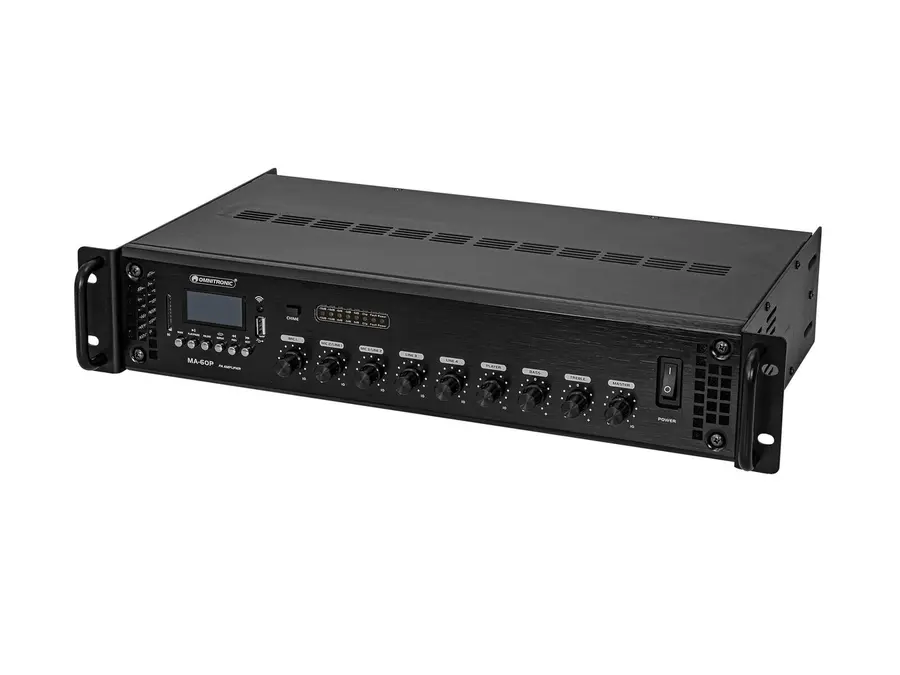

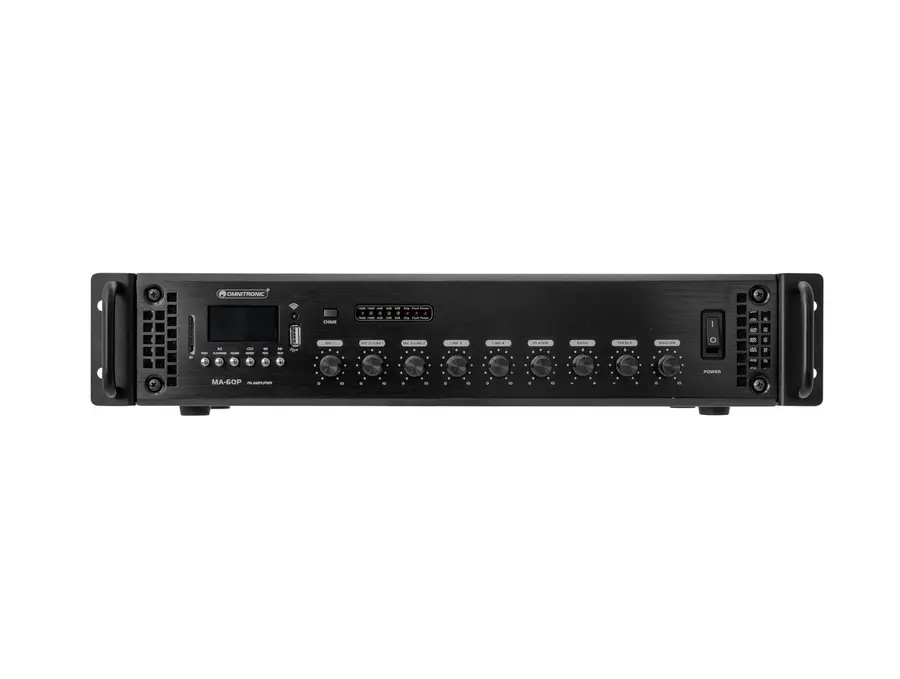

The OMNITRONIC MA-60P is a 60 W RMS PA mixing amplifier with an integrated MP3 audio player, Bluetooth and IR remote control. It is designed for fixed installations and applications such as restaurants, bars, hotels and sports centres.
- Wireless music streaming from smartphones, tablets and other mobile devices via Bluetooth
- MP3 playback from USB devices and SD cards up to 32 GB, formatted as FAT32; supports up to 999 files
- Folder navigation, repeat functions and random play
- Three microphone inputs with separate level controls; Mic 1 features phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line operation
- Two line inputs and one line output
- Master bass and treble controls, plus master level control
- Switchable chime function and five-digit LED level meter
- Speaker output for 70 V and 100 V PA systems, as well as 4–16 ohm loads
- Protection functions for overload, short circuit, limiter operation and overheating
- Class AB circuitry and fan cooling
- 19-inch rackmount housing, 2 U
Technical specifications
- Output power: 60 W RMS
- Frequency range: 50–18,000 Hz
- Signal-to-noise ratio: >75 dB microphone, >85 dB line
- THD: <0.5% at 1 kHz

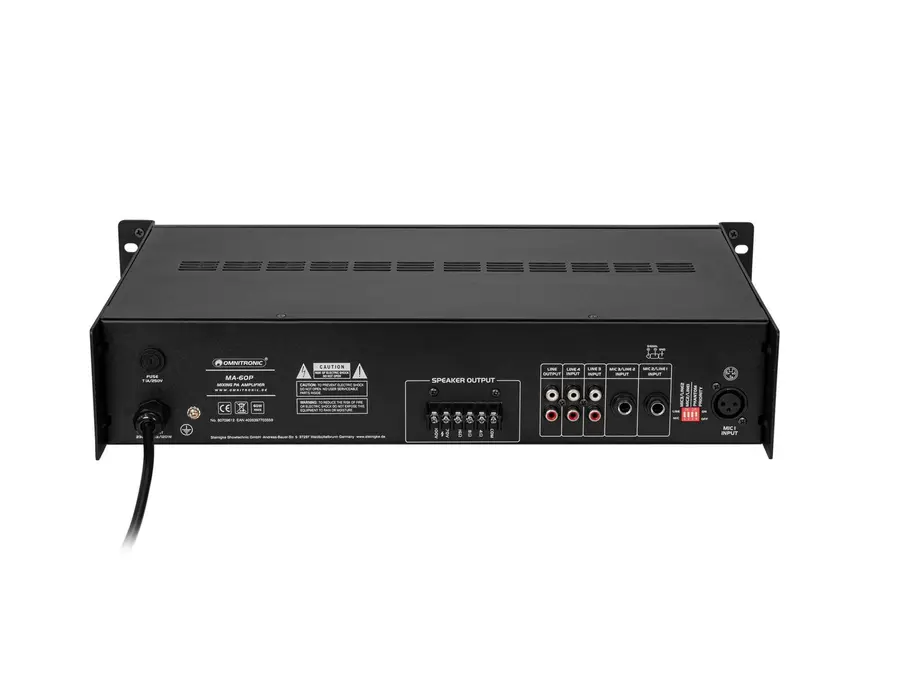

- Inputs: microphone via 1 x 3-pin XLR and 2 x 6.3 mm unbalanced jack; line via 3 x stereo RCA, 0.3 V
- Outputs: line via 1 x stereo RCA, 0.3 V; speaker output via screw terminal
- Power supply: 230 V AC, 50 Hz; power consumption: 120 W
- Dimensions: 48.3 x 27.5 x 9.6 cm; weight: 5.00 kg
- Housing colour: black
Included
- IR remote control with built-in CR2025 lithium-manganese button cell
- User manual
- Two mounting brackets and four screws
