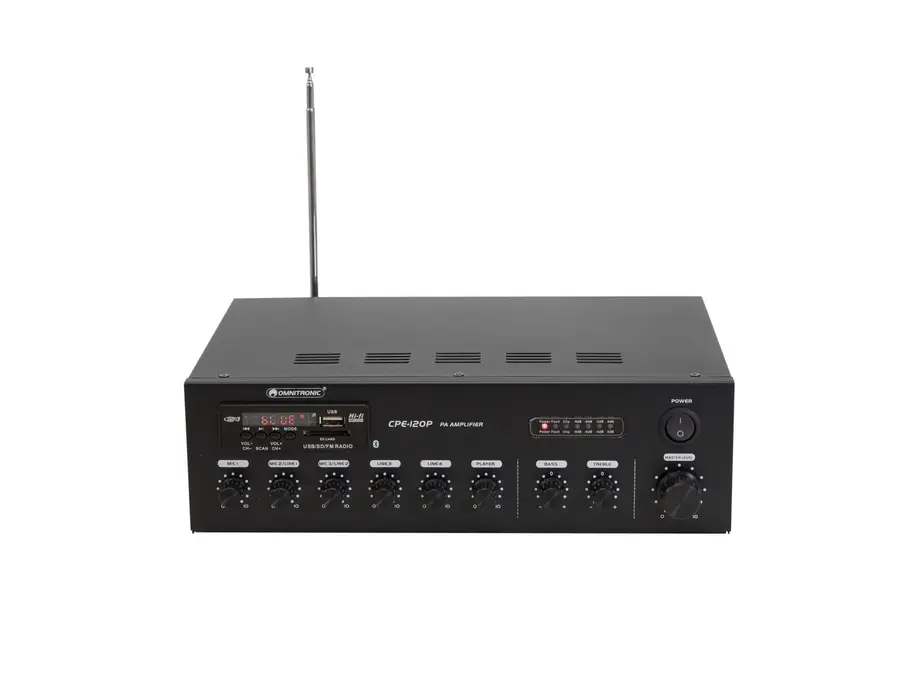

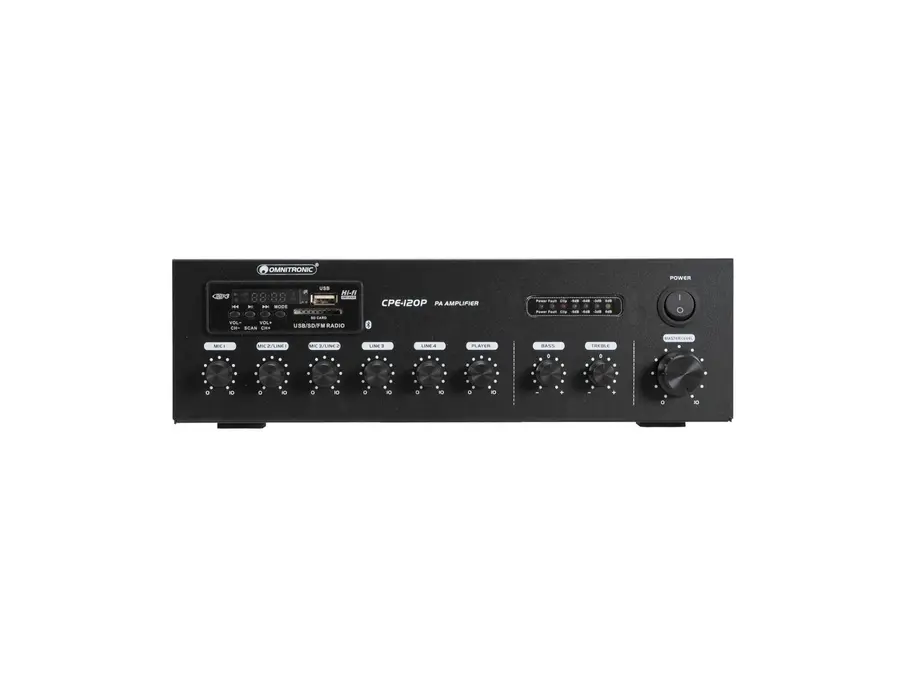

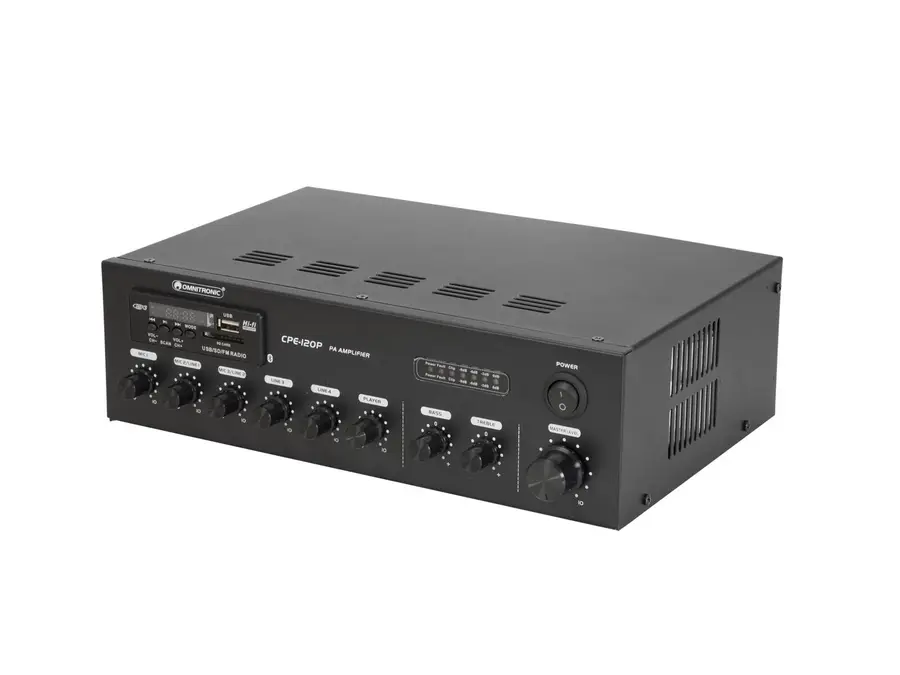

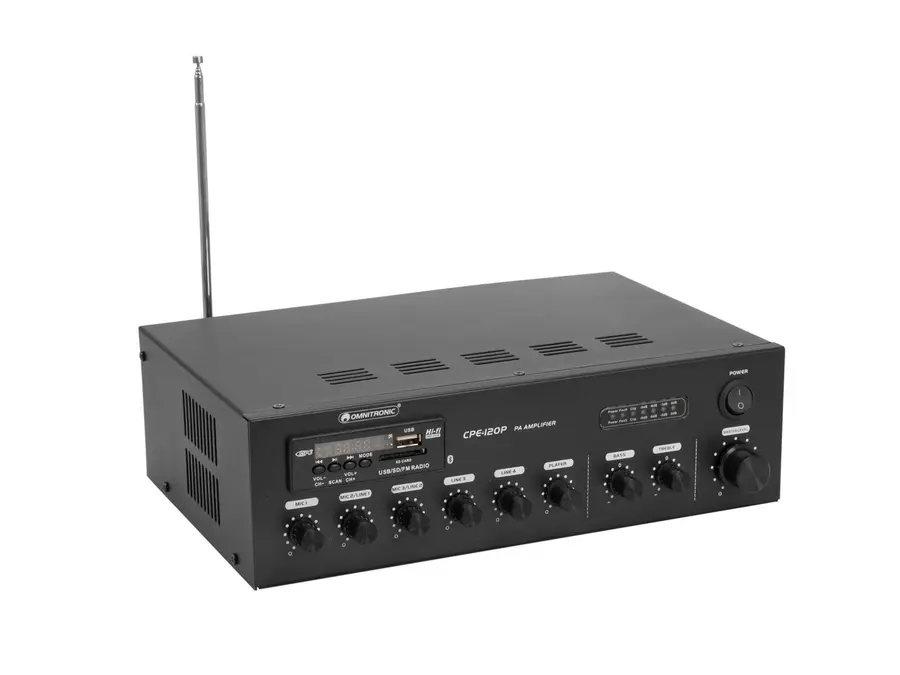

The OMNITRONIC CPE-120P is a 120 W RMS PA mixing amplifier with an integrated audio player, Bluetooth control and IR remote control. It supports 4–16 ohm loudspeaker systems as well as 70 V and 100 V public address systems, and can operate from mains power or a 24 V emergency power supply.
- Audio player with MP3 playback from USB devices and SD cards, plus Bluetooth and FM radio with automatic scan
- Three microphone inputs with separate level controls; Mic 1 provides phantom power and a priority circuit
- Mic 2 and Mic 3 can be switched between microphone and line level
- Two line inputs with separate level controls and one line output
- Master treble, bass and volume controls for the output signal
- Four-digit LED level meter and monochrome four-digit, seven-segment LED display
- Protection against overload, short circuits and overheating, with limiter
- Class D circuitry and fan cooling
- Black desktop console housing, 2 U, measuring 30.3 × 22 × 9.1 cm and weighing 3.96 kg

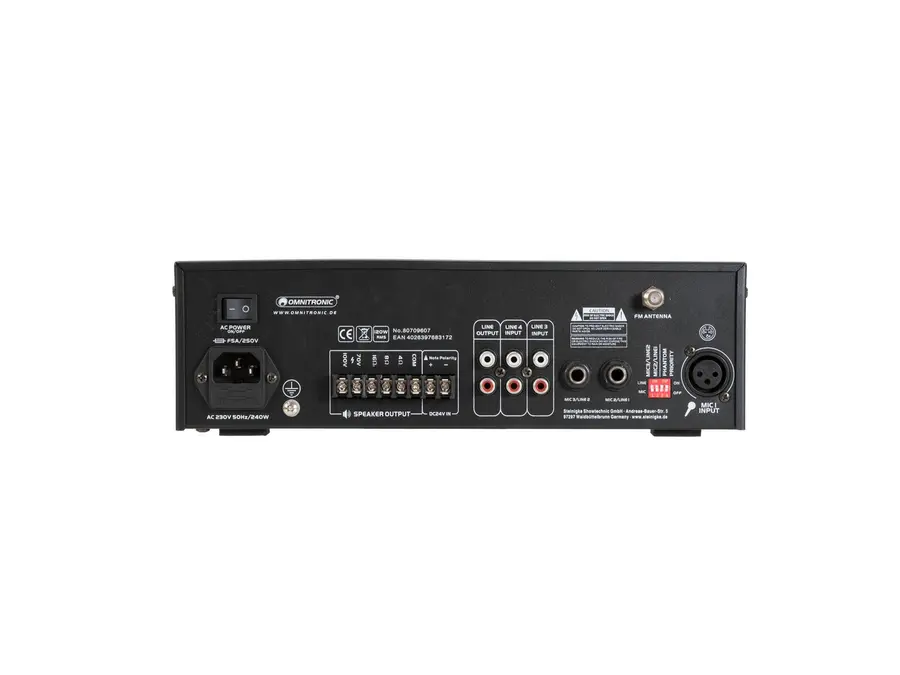

Connections and power
- Microphone input via 3-pin XLR
- Two switchable mic/line inputs via 6.3 mm jack sockets
- Two stereo RCA line inputs
- Stereo RCA line output at 0.774 V
- Loudspeaker output via screw terminal
- 230 V AC, 50 Hz mains operation or 24 V emergency power operation
- IEC mains input; power cord with safety plug included
Included
- Power cord
- Antenna
- IR remote control with built-in CR2025 lithium-manganese button cell
- User manual
- Declaration of conformity
