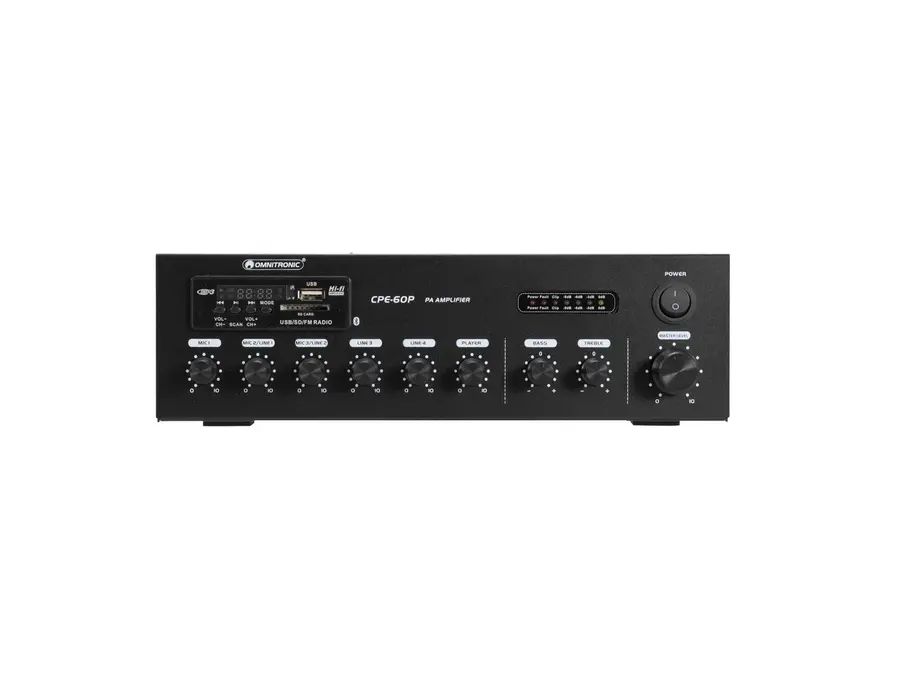

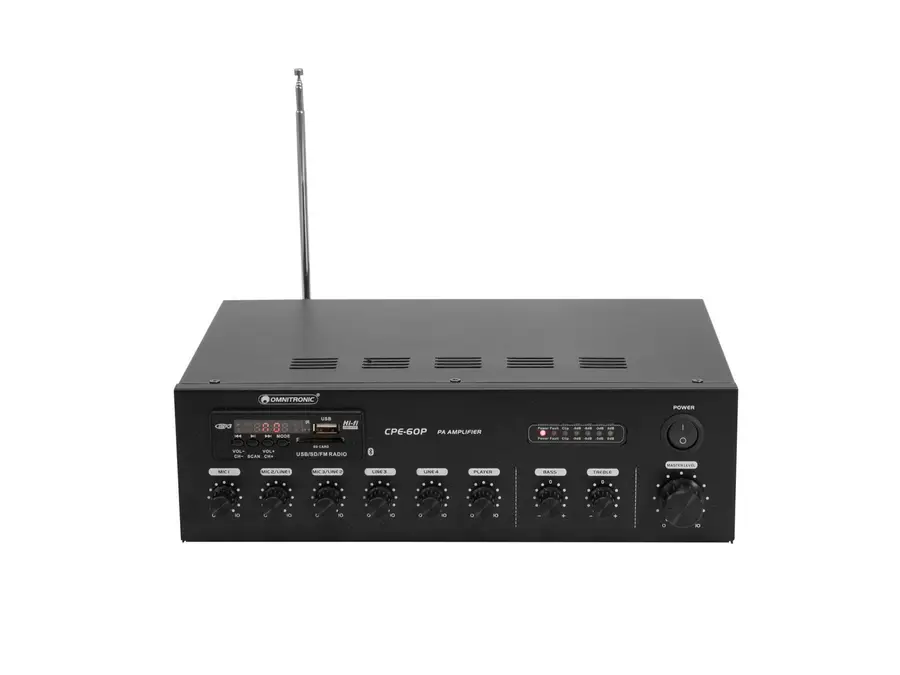

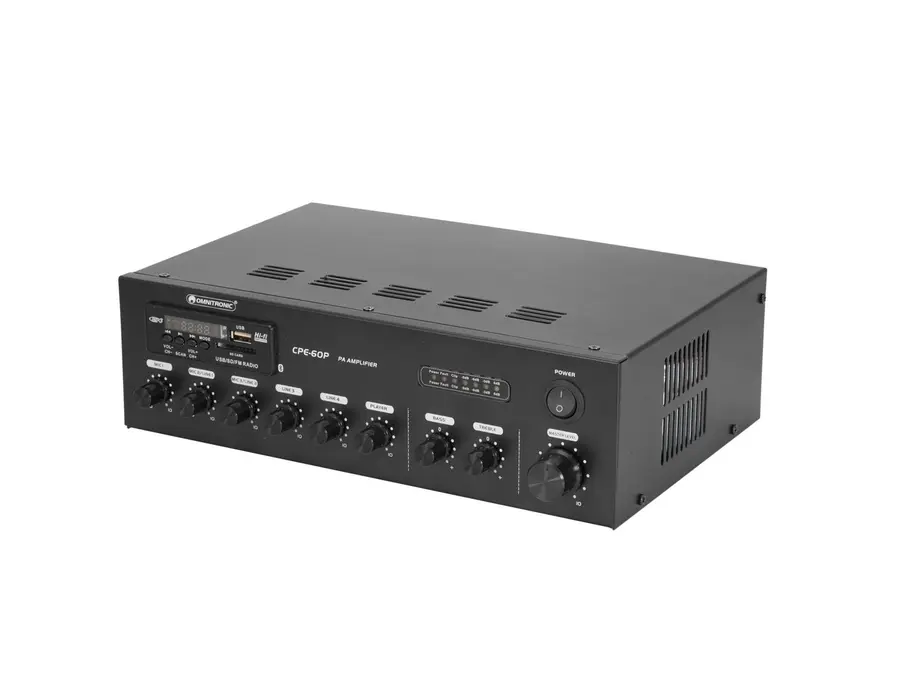

The OMNITRONIC CPE-60P is a 60 W RMS PA mixing amplifier with an integrated audio player, Bluetooth control and IR remote control. It supports MP3 playback via USB or SD card, includes an FM tuner with auto scan, and is suited to installations in restaurants, bars, hotels and sports centres or gyms.
- Three microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable between microphone and line level
- Two line inputs with separate level controls and one line output
- Master bass, treble and volume controls for the output signal
- Monochrome four-digit 7-segment LED display and four-digit LED level meter
- Class D circuitry
- Protection against overload, short circuits and overheating, plus a limiter
- Compatible with 4, 8 and 16 ohm loads, as well as 70 V and 100 V public address systems
- Mains operation or 24 V emergency power operation
- Desktop console housing with a height of 2 U

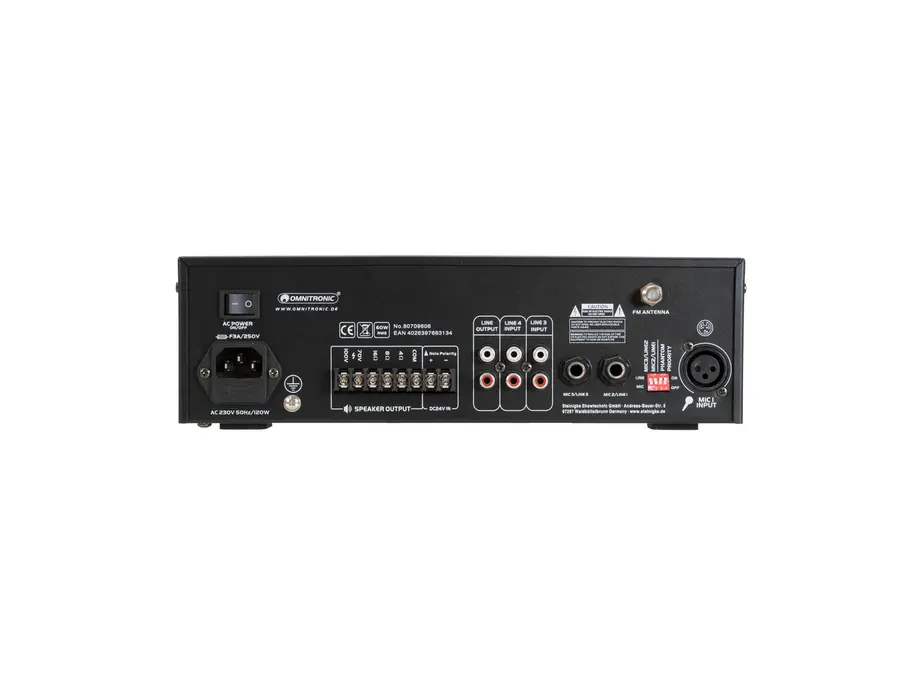

Connections and specifications
- Microphone input via 1 x 3-pin XLR
- Two mic/line inputs via 6.3 mm jack sockets
- Two stereo RCA line inputs
- Stereo RCA line output, 0.774 V
- Speaker output via screw terminal
- Power supply: 230 V AC, 50 Hz or 24 V
- Power consumption: 120 W
- Dimensions: 30.3 x 22 x 9.1 cm (W x D x H)
- Weight: 3.28 kg
Included
- Power cord
- Antenna
- IR remote control with built-in CR2025 battery
- User manual
- Declaration of conformity
