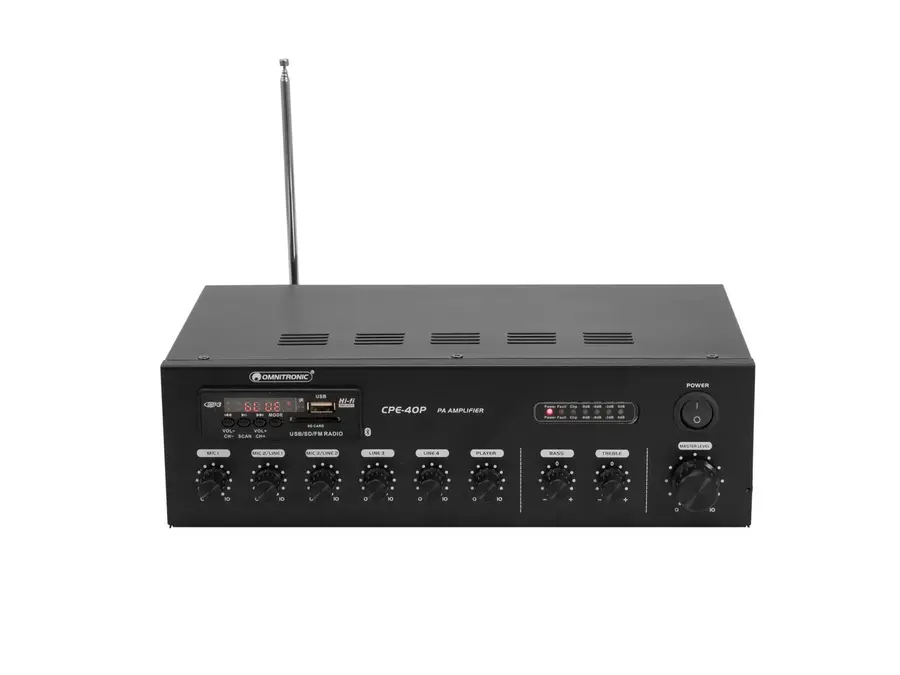

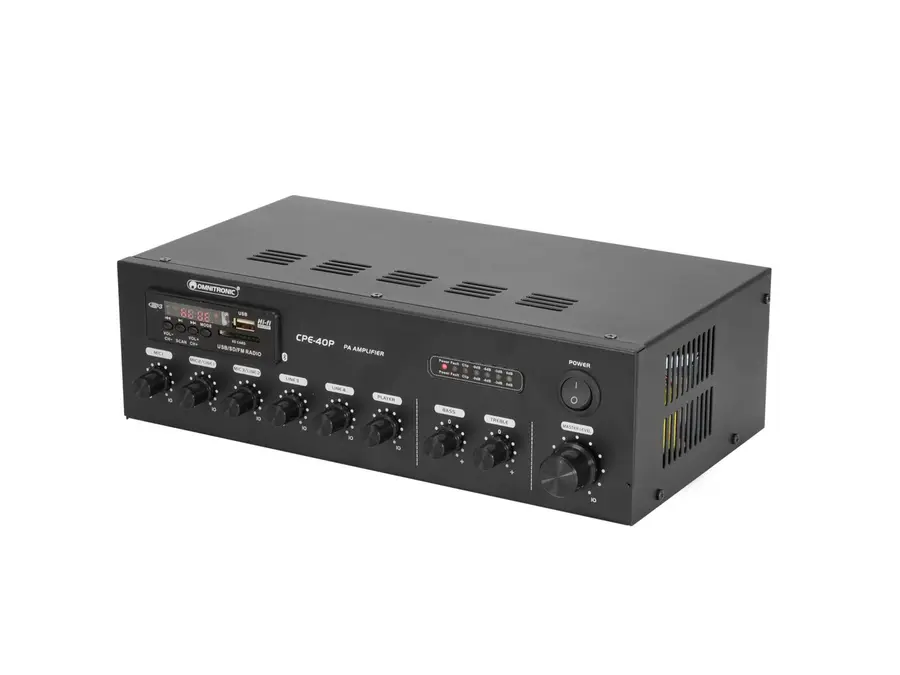

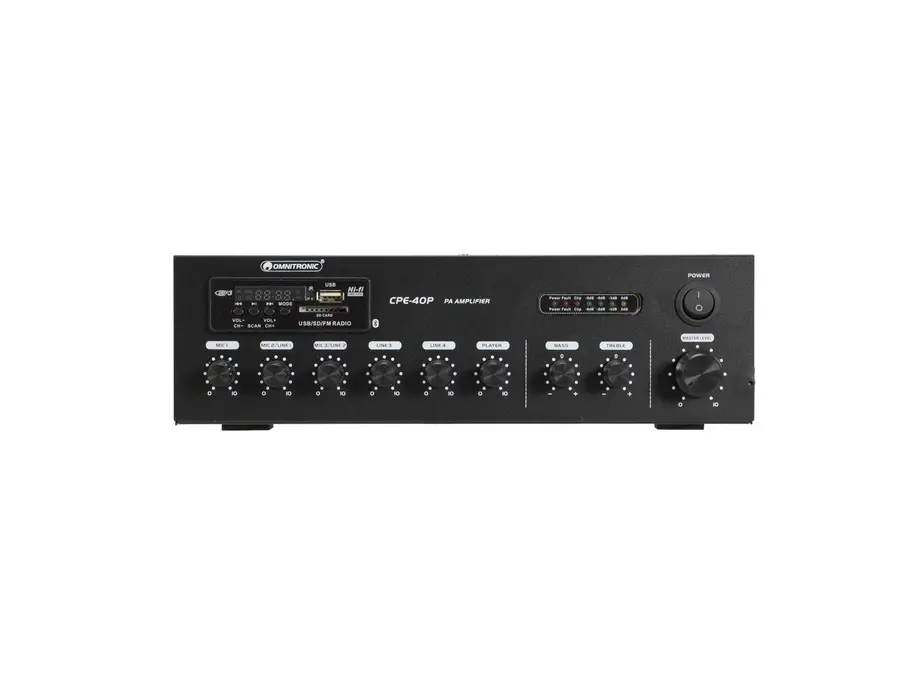

The OMNITRONIC CPE-40P is a 40 W RMS PA mixing amplifier with an integrated audio player, Bluetooth control and IR remote control. It supports USB and SD media, MP3 playback and FM radio with automatic scanning, and is suitable for installations such as restaurants, bars, hotels, sports centres and gyms.

• 40 W RMS output power with Class D circuitry
• Compatible with 4, 8 and 16 ohm speaker systems, as well as 70 V and 100 V public address systems
• Three microphone inputs with separate level controls
• Mic 1 with phantom power and priority circuit
• Mic 2 and 3 switchable between microphone and line level
• Two line inputs with separate level controls
• Master treble, bass and volume controls

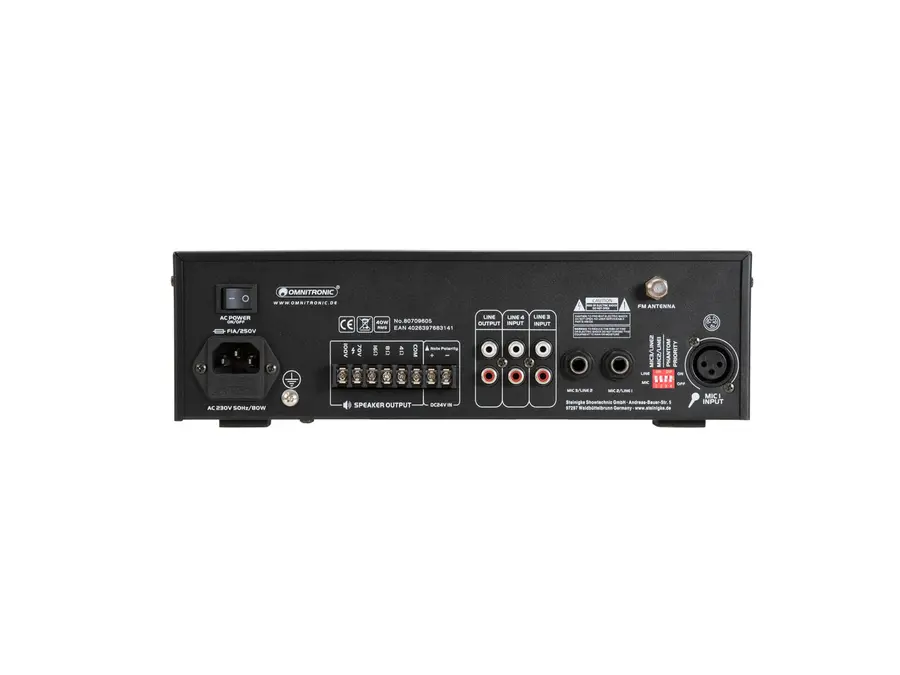

• One line output and speaker output via screw terminal
• Four-digit LED level meter and monochrome four-digit 7-segment LED display
• Protection against overload, short circuit and overheating, plus limiter
• 230 V AC mains operation or 24 V emergency power operation
• 2 U desktop console housing

Technical specifications

• Inputs: 1 x 3-pin XLR microphone input, 2 x 6.3 mm jack mic/line inputs and 2 x stereo RCA line inputs
• Line output: stereo RCA, 0.774 V
• Audio player: USB, SD, Bluetooth and FM radio; MP3 playback
• Dimensions: 30.3 x 22 x 9.1 cm (W x D x H)
• Weight: 3.19 kg

Included

• Power cord
• Antenna
• IR remote control with built-in CR2025 lithium-manganese button cell
• User manual
• Declaration of conformity
