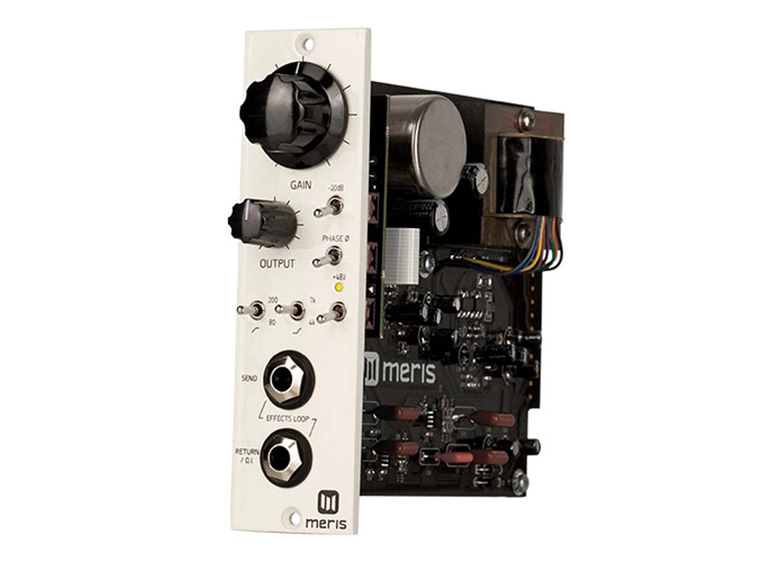

The Meris 440 is a 500 Series preamp designed for guitar recording. Its all-analogue signal path combines Cinemag™ transformers with high-performance hybrid-discrete op-amps, while the post-effects loop makes it possible to integrate guitar pedals into the signal from a microphone placed in front of vocals, acoustic instruments or guitar cabinets.
The input section provides up to 60 dB of gain, while the output trim can be adjusted from -27 dB to +12 dB. The Return jack can also be used as a DI input after the filters, pad and phase inversion.
- 500 Series preamp module for installation in a 500 Series rack or lunchbox module
- Microphone preamp for guitar recording
- Up to 60 dB of input gain
- Output trim from -27 dB to +12 dB
- Post-effects loop
- Selectable high-pass filter at 80 Hz or 200 Hz
- Selectable high-shelf filter at 7 kHz or 4 kHz
- Flat frequency response from 20 Hz to 2 kHz with all filters disengaged
- 100% analogue signal path
- Gain and Output controls
- -20 dB pad toggle switch for high input signals
- Phase toggle switch for inverting signal phase
- +48V toggle switch for enabling phantom power
- Toggle switches for selecting the high-shelf and high-pass filter frequencies
- Status LED for +48V phantom power operation
- Metal housing
- Two front-mounted 6.3 mm mono Send/Return jacks
- Return jack usable as a DI input after the filters, pad and phase inversion
- Made in the USA
